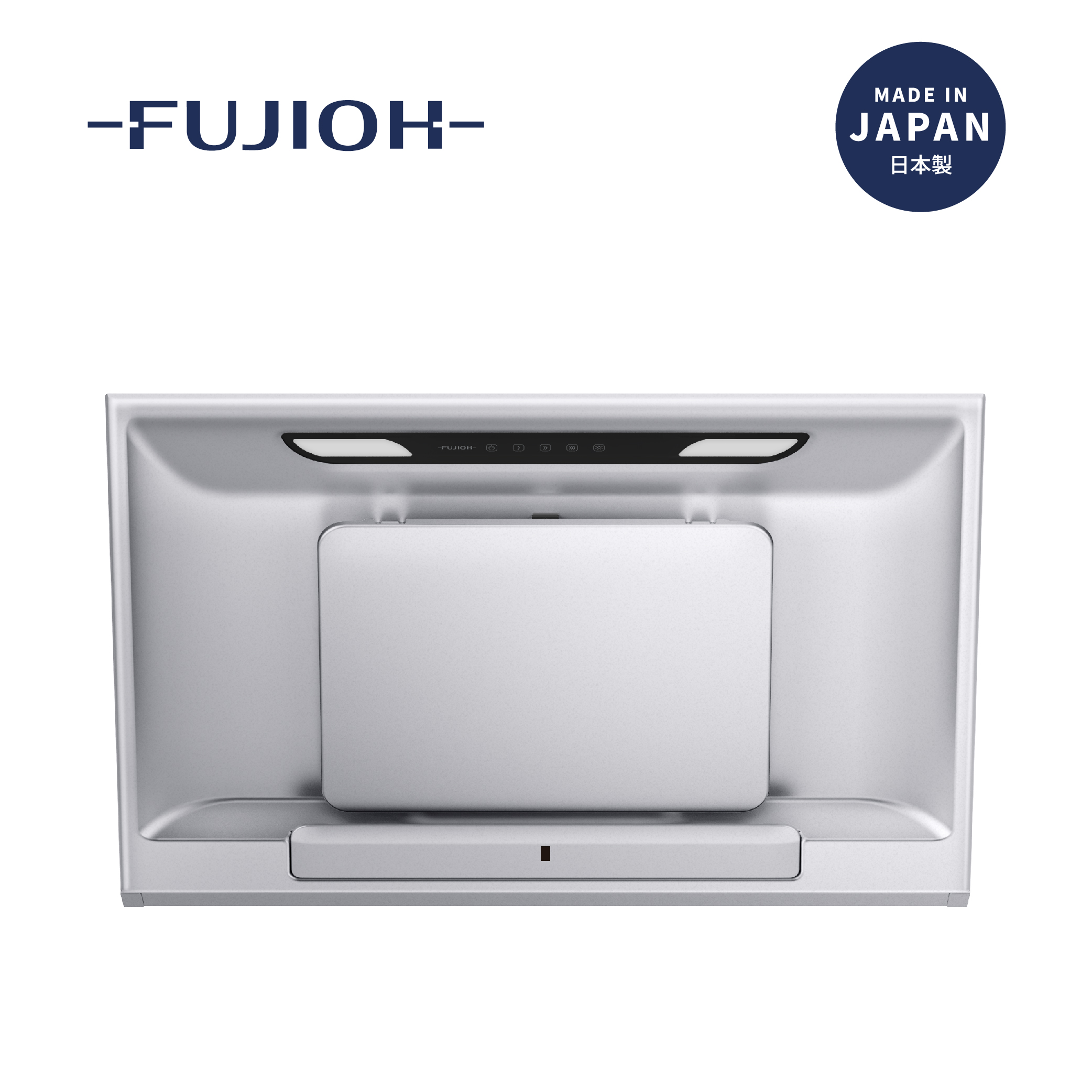

900mm Inclined Design Cooker Hood
FR-SC2090 R/V
Icon Include
Super Kirei Fan
Icon Include
Aqua Slit Filter
Icon Include
Oil Repellent Oil Tray
Icon Include
Oil Repellent Exterior Hood
Icon Include
Rectifier Panel
Icon Include
Inclined Design
Icon Include
Touch Switch
Icon Include

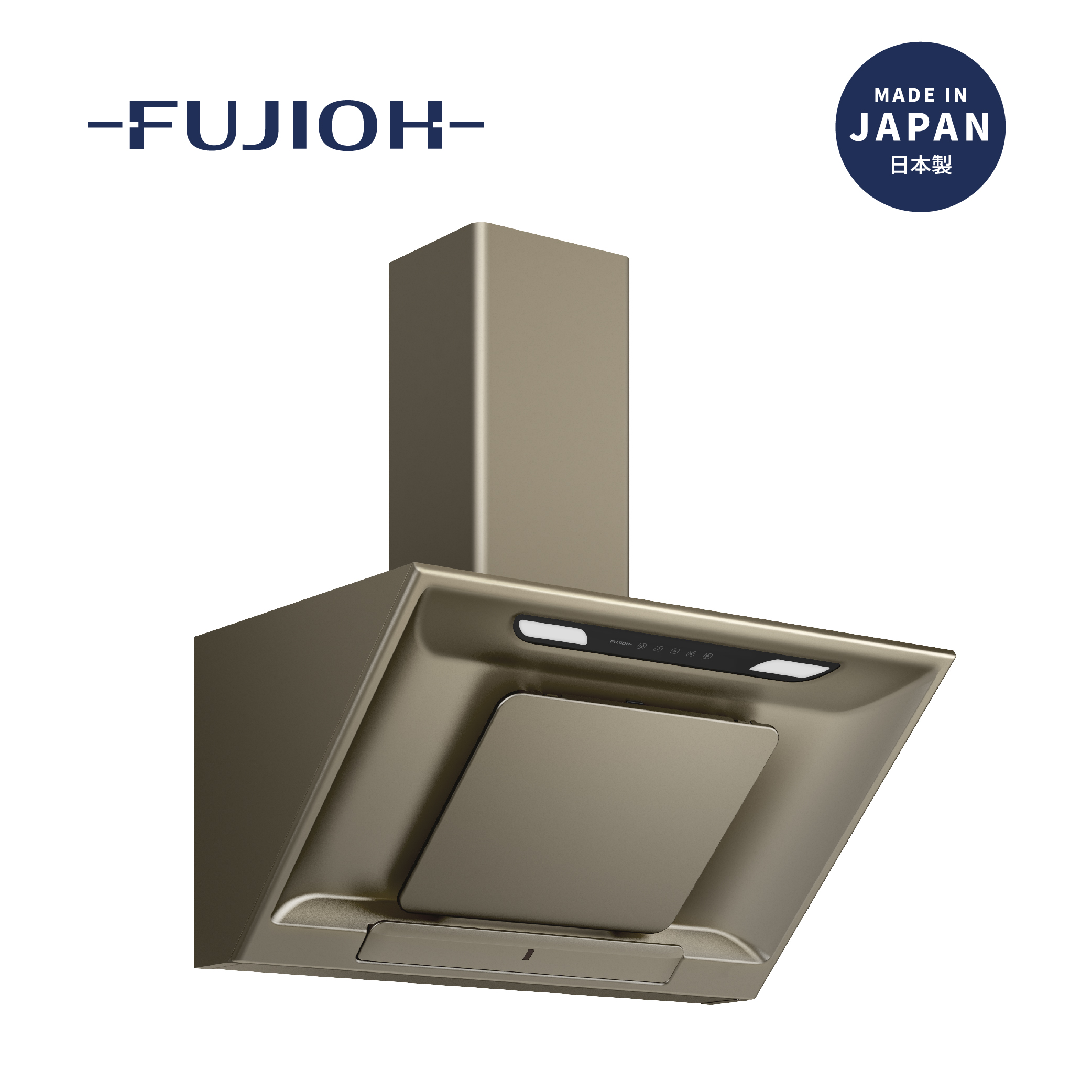

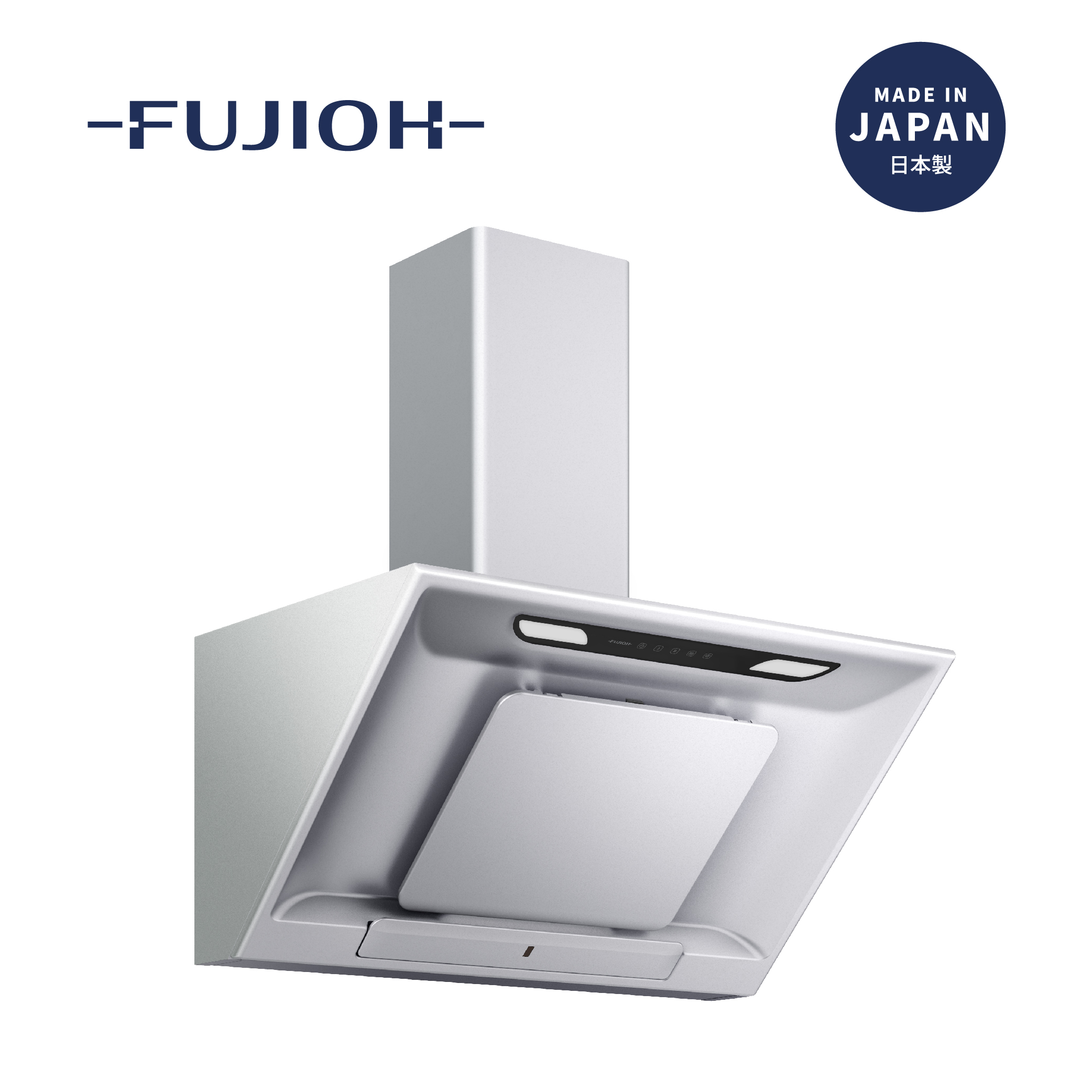

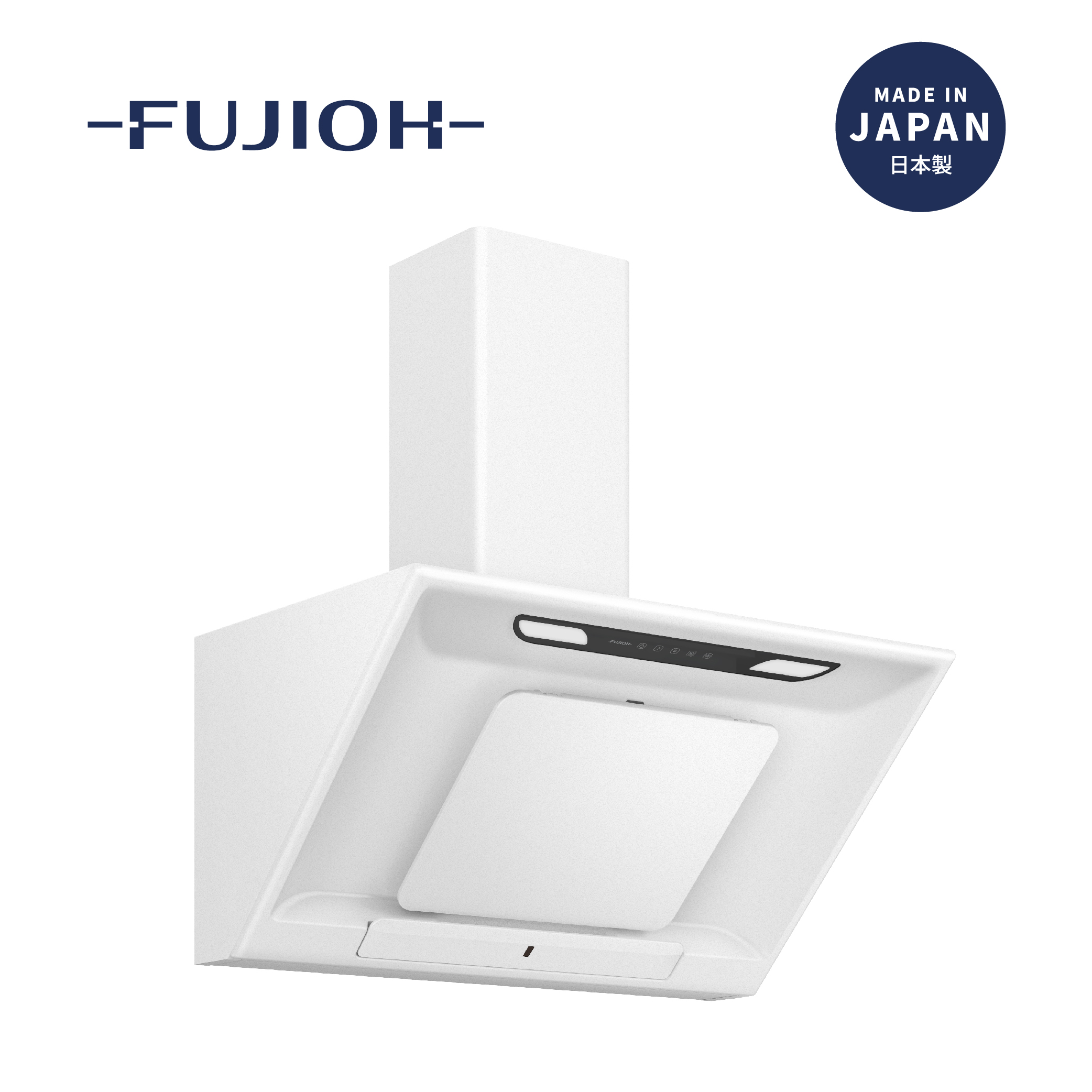

Colour Variation
Icon Include
LED

Immaculate Outside in

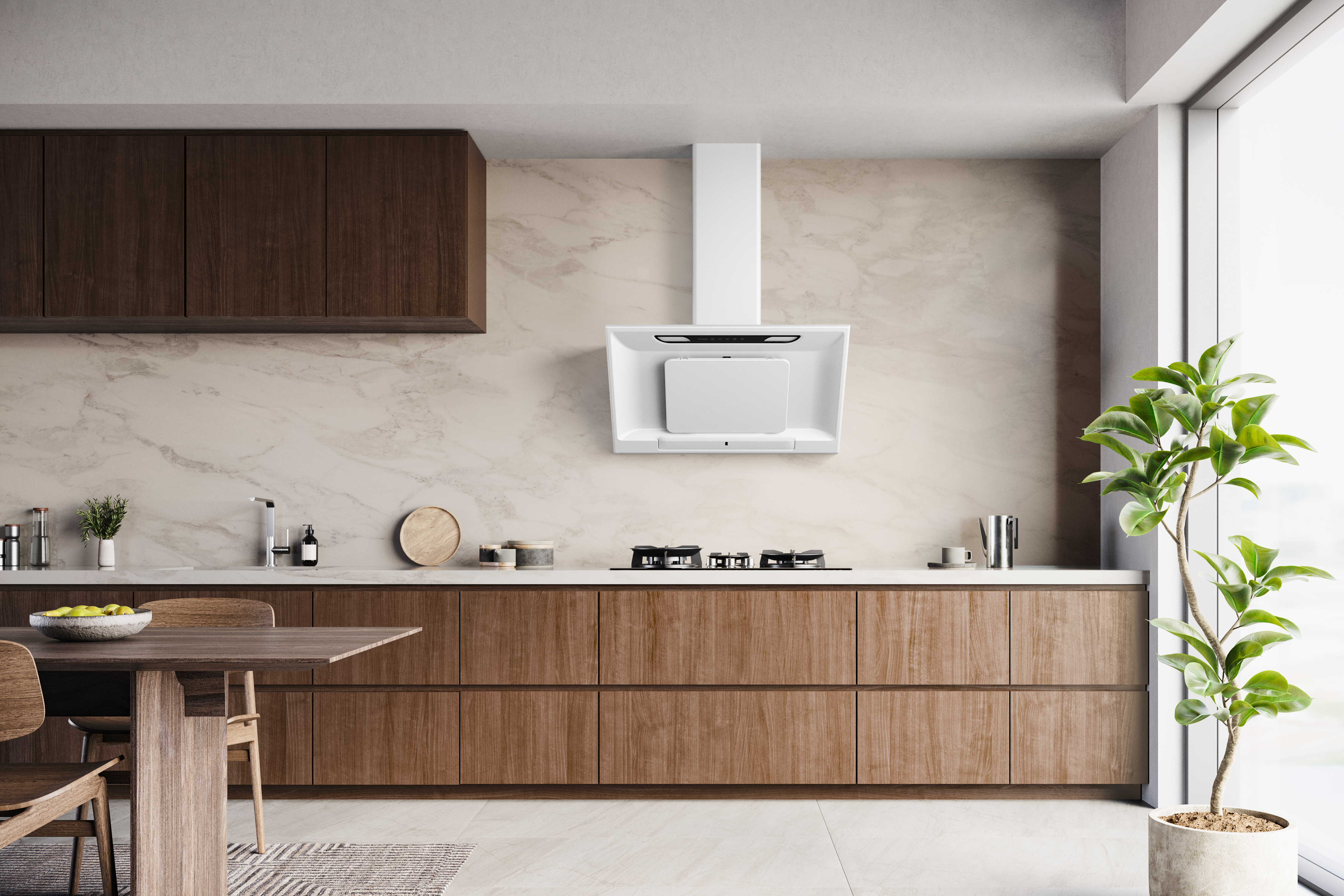

A fusion cooker hood of an ergonomic inclined design and easy cleaning feature bringing cleanliness to a revolutionized preeminent level. Your cooker hood has never been cleaner than before, both outside in.

Country of Origin: Made in Japan

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

Promotions Applicable:
  • Super Kirei Coating on Fan
  • Aqua Slit Filter with Hydrophilic Coating
  • Oil Repellent Paint on exterior hood surface
Clear
Feature

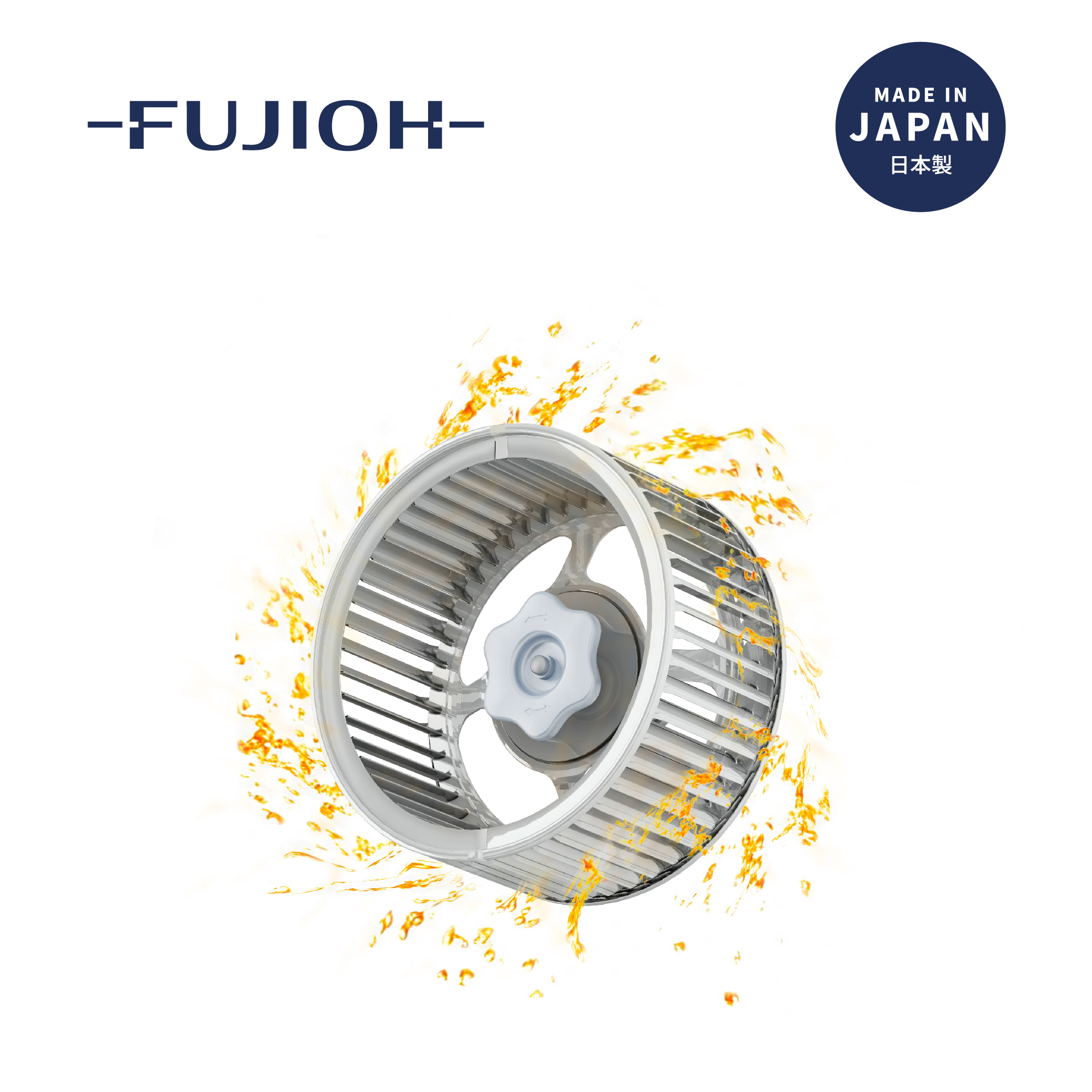

Super Kirei Fan Icon
  • Eliminates the accumulation of oil and stain build-up on fan
  • Repels and induces oil from cooking fumes to accumulate in oil tray
  • Keeps fan and internal body of cooker hood clean for longer time
Advanced Technology in Oil Capturing Icon
  • Oil separation process filtrates captured fumes into oil
  • Oil flows into the oil tray with the help of rectifier panel, aqua slit filter and sirocco fan
Feature
Feature
Advanced Technology in Fume Capturing Icon
  • Adjustable suction from bottom of Rectifier Panel to improve suction power from upper, left, and right side
  • Capture more fumes efficiently
EASY MAINTENANCE – OIL REPELLENT PAINT Icon
  • Oil repellent paint is processed on all surfaces
  • Easy to wipe and clean
Feature
Feature
EASY MAINTENANCE – AQUA SLIT FILTER Icon
  • Hydrophilic Coating
  • Easy to wipe and clean
Ergonomic Inclined Design Icon
  • Sleek and stylish design
  • Lower positioning to hob helps in smooth and efficient absorption of cooking fumes
Feature

Models

FR-SC2090R

FR-SC2090V

Type

Recycling

Ventilation

Material

(Body) Galvanized Steel
(Switch Panel) Glass

(Body) Galvanized Steel
(Switch Panel) Glass

Dimensions [mm]

W900 x D544 x H490

W900 x D544 x H1045~1345

Weight [kg]

21

21

Power Consumption [W] (220/230/240V)

160/170/180

160/170/180

Voltage [V/Hz]

220-240/50

220-240/50

Duct Diameter [mm]

-

150

Air Flow [m3/h] (220/230/240V)

495/500/505

700/705/710

Sound Level [dB] (220/230/240V)

52/52/52

55/55/56

Oil Capturing Ratio [%]

92

85

Switch

Touch Switch

Touch Switch

Speed

3 Speeds

3 Speeds

Hood Body

Oil Repellent Paint

Oil Repellent Paint

Fan

Steel fan
with Super Kirei Coating

Steel fan
with Super Kirei Coating

Rectifier Panel

Oil Repellent Paint

Oil Repellent Paint

Filter

Aqua Slit Filter
Hydrophilic Coating

Aqua Slit Filter
Hydrophilic Coating

Oil Tray

Oil Repellent Paint

Oil Repellent Paint

Motor

AC Motor

AC Motor

Lighting

LED 1.5W x 2

LED 1.5W x 2

Timer

-

-

* All specification are based on stringent in-house test results conducted in Fuji Industrial Co. Ltd, Japan

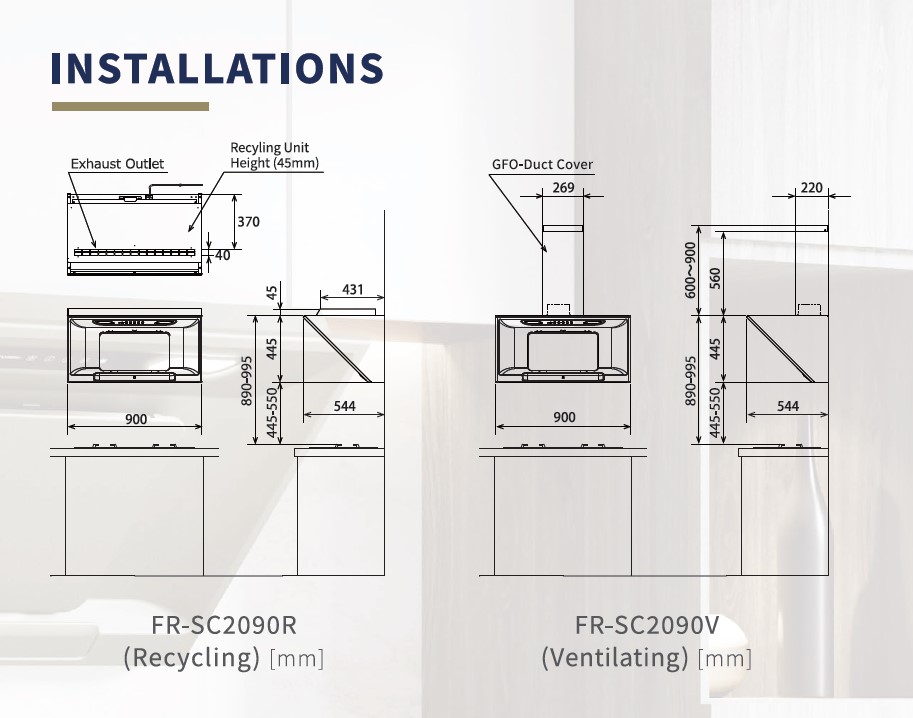

Installation Drawing

Please download Installation Drawing here.

Drawing

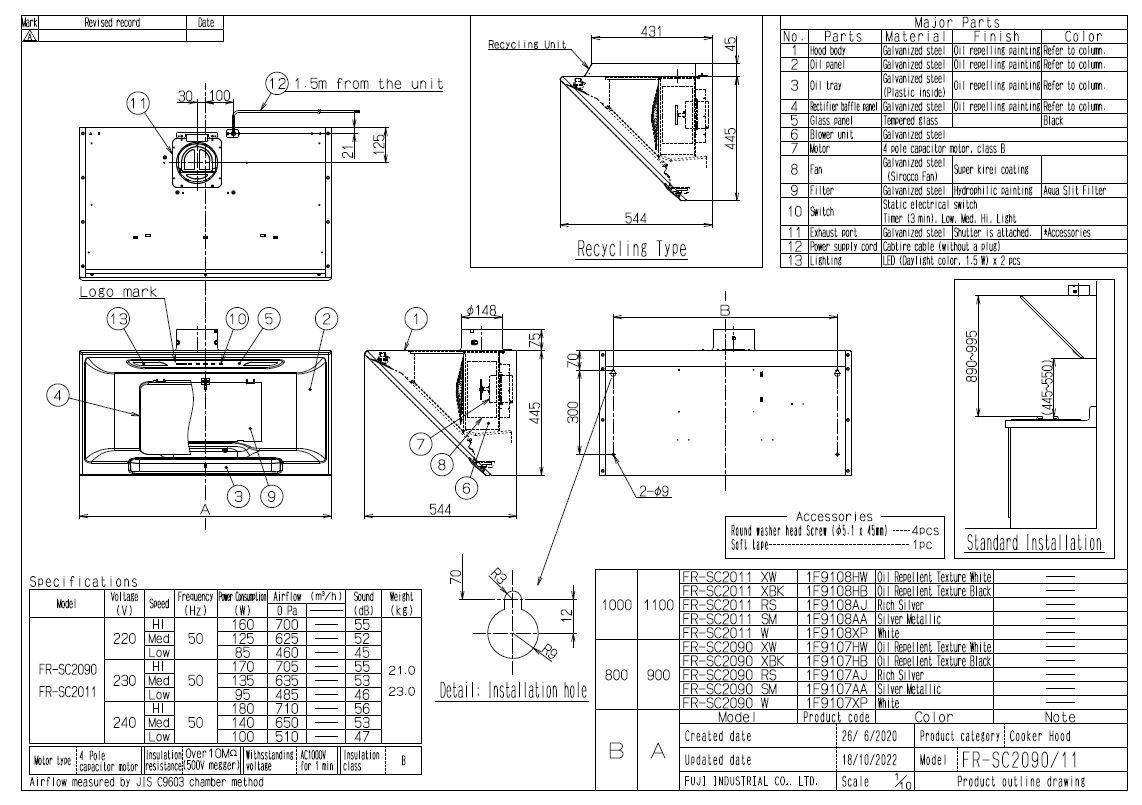

Product Drawing

Please download Product Drawing here.

Drawing

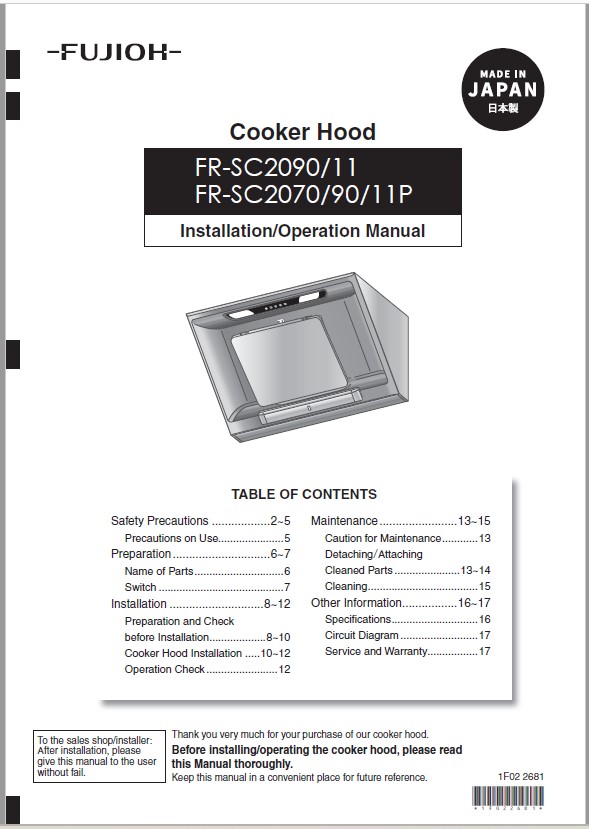

Product Manual

Please download Product Manual here.

Downloads

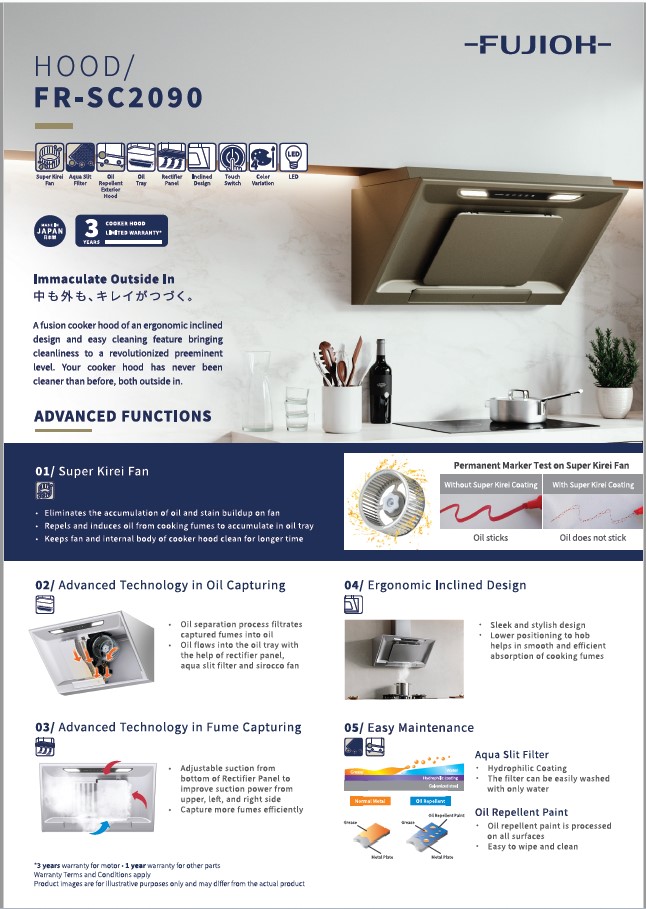

Product Catalogue

Please download Product Catalogue here.

Downloads
Accessories
  • Oil Tray
  • Rectifier Panel
  • Aqua Slit Filter
  • Recycling Unit (For FR-SC2090V)
  • GFO-Duct Cover (for FR-SC2090V)
