890mm Slim Cooker Hood
FR-FS1890 R/V
Icon Include
Aqua Slit Filter
Icon Include
Oil Repellent Exterior Hood
Icon Include
Rectifier Panel
Icon Include
Color Variation
Icon Include
LED

Small in size, big on performance

This ultra-thin hood is deceptively tough on oil to stop build-up on your kitchen surfaces.

Three aesthetically gorgeous finishes mean there’s the perfect Slim Oil Tech cooker hood for your interior design. Especially designed for the Asian kitchen, it captures your cooking fumes and filters the oil into the oil tray for easy removal and cleaning. Technically advanced, it doesn’t have to be big to be powerful.

Country of Origin: Made in Japan

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

Promotions Applicable:
  • Aqua Slit Filter with Hydrophilic Coating
  • Oil Repellent Paint on exterior hood surface
  • Slim Hood
Clear
Feature

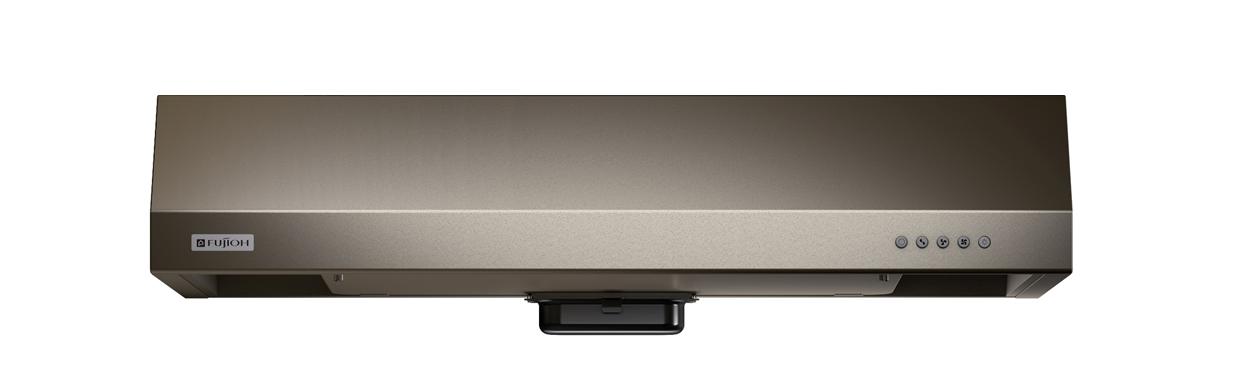

Slim Design Icon

• Easy to install
• Only 180mm high

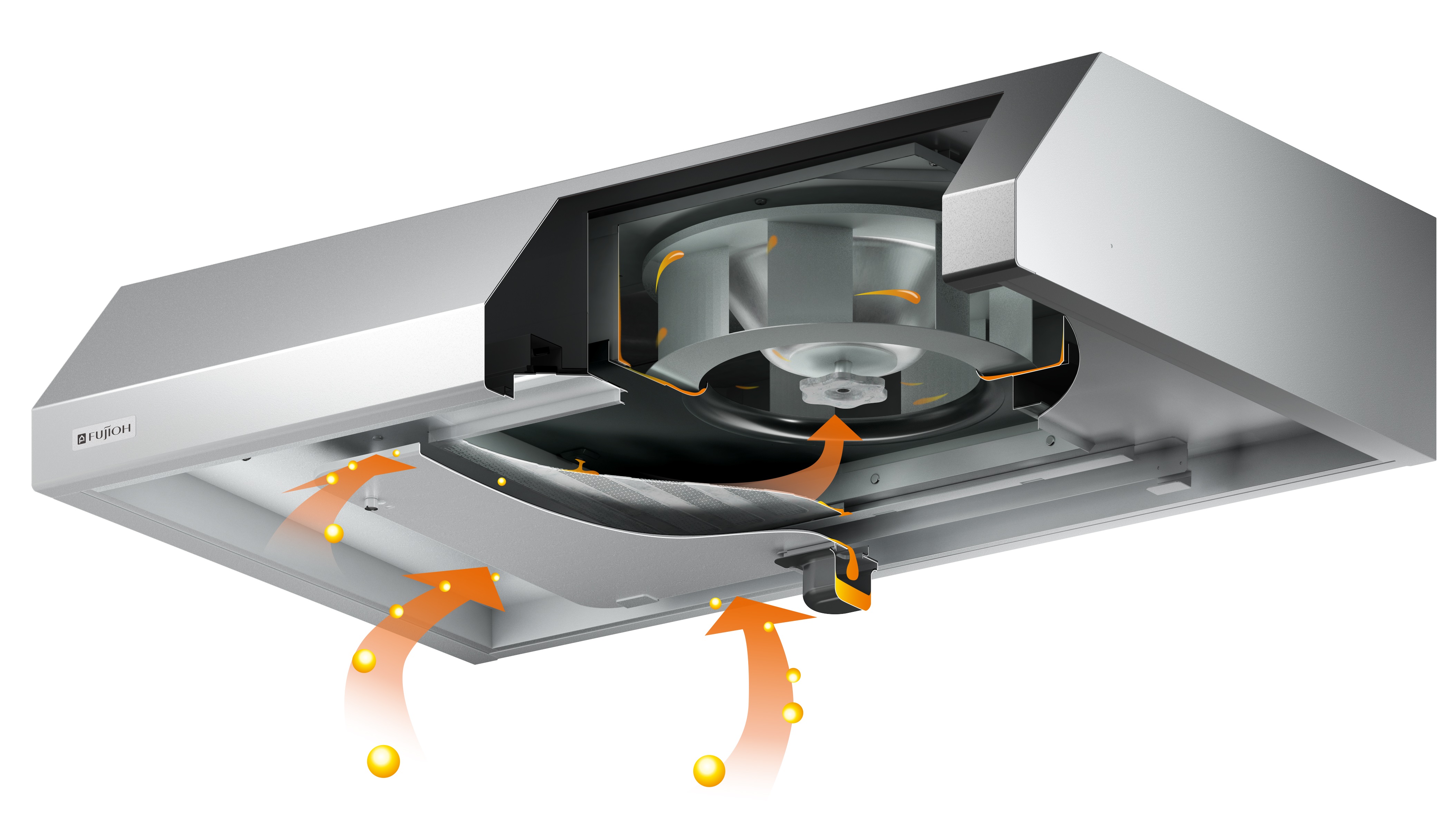

Advanced Technology in Fume Capturing Icon

• Capture more fumes efficiently

Feature
Feature
Advanced Technology in Oil Capturing Icon

• Oil separation process filtrates captured fumes into oil
• Oil flows into the oil tray with the help of rectifier panel, aqua slit filter and fan

Feature
Easy Maintenance - Aqua Slit Filter Icon

• Hydrophilic Coating
• The filter can be easily washed with only water

Easy Maintenance - Oil Repellent Paint Icon

• Oil repellent paint is processed on surfaces
• Easy to wipe and clean

Models

FR-FS1890R

FR-FS1890V

Type

Recycling

Ventilation

Material

(Body) Galvanized Steel

(Body) Galvanized Steel

Dimensions [mm]

W890 x D550 x H180

W890 x D550 x H180

Weight [kg]

20

21

Power Consumption [W]
(220/230/240V)

92/97/103

92/97/103

Voltage [V/Hz]

220-240/50

220-240/50

Duct Diameter [mm]

-

150

Sound Level [dB]
(220/230/240V)

56/57/57

57/58/59

Oil Capturing Ratio [%]

83

81

Switch

Mechanical Push Button

Mechanical Push Button

Speed

3 Speeds

3 Speeds

Hood Body

Oil Repellent Paint

Oil Repellent Paint

Fan

Steel fan

Steel fan

Rectifier Panel

Oil Repellent Paint

Oil Repellent Paint

Filter

Aqua Slit Filter
Hydrophilic Coating

Aqua Slit Filter
Hydrophilic Coating

Oil Tray

Oil Repellent Paint

Oil Repellent Paint

Motor

AC Motor

AC Motor

Lighting

LED 3.5W x 1

LED 3.5W x 1

Timer

-

-

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing
PRODUCT DRAWING

Please download Product Drawing here.

Drawing
PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Oil Tray
  • Aqua Slit Filter
  • Rectifier Panel
