FH-ID5120
Icon Include
Pan Sensor
Icon Include
Residual Heat Indicator
Icon Include
Touch Control
Icon Include
Auto Switch Off
Icon Include
Child Safety Lock
Icon Include
Timer

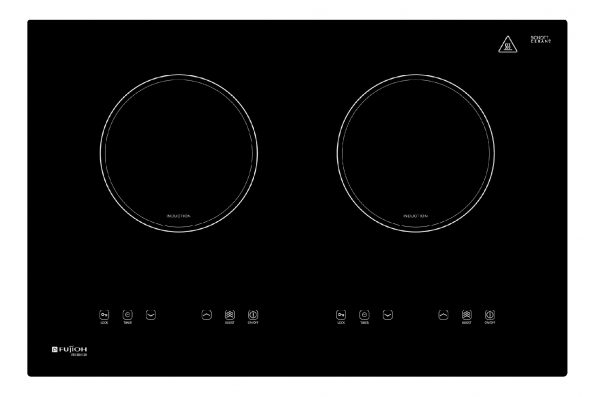

Harmony between aesthetics and function

Make your cooker hob part of your kitchen aesthetics–functional when you need it, and simply an extension of the counter top when you don’t.

Our state-of-the-art ceramic induction hobs are exceptionally durable and feature quality glass by SCHOTT. The smooth surface makes cleaning up a breeze, and safety features ensure you know when the surface is hot. We think you’ll love the bevelled edges we added for the ultimate statement of style.

Surface Type: SCHOTT CERAN®

Country of Origin: Made in China

Warranty Coverage:

1-year warranty for parts
Warranty Terms and Conditions apply

  • SCHOTT CERAN ® Ceramic Glass
  • IH Horizontal 2 zones
  • Power (1.5~2.0) x 2 = max 3.5 kW
Feature
01/ SCHOTT CERAN ® Ceramic Glass

SCHOTT CERAN® is easy to maintain. Major and minor incidents while cooking can be cleaned up immediately. And an induction range will make life even easier for you. The heat is only generated at the bottom of the pot; therefore you’ll never see the severe burn-ins that occur on conventional stoves.

02/ Bevelled Edge

The bevelled edge is an additional process on the edge for decoration. The bevelled edge design is the ultimate statement of style that brings out the beauty of your ceramic induction hob.

Feature

Boost

Yes

Touch Control

Yes

Timer

180 min

Power Setting

8 step + boost

Child Safety Lock

Yes

Residual Heat Indicator

Yes

Auto Switch Off

Yes

Pan Sensor

Yes

Schott Glass

Yes

Type

IH Horizontal 2 zones

Material

SCHOTT CERAN®

Colour

Black

Dimensions [mm]

W650 x D430 x H65

Cut Size [mm]

W570 x D375

Weight [kg]

5.9

Voltage [V/Hz]

220-240/50-60

Power [kW]

(1.5~2.0) x 2 = max 3.5

Ampere required (Based on 230V)

15

Zone Size [mm]

190 each

Installation Method

Built-in

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

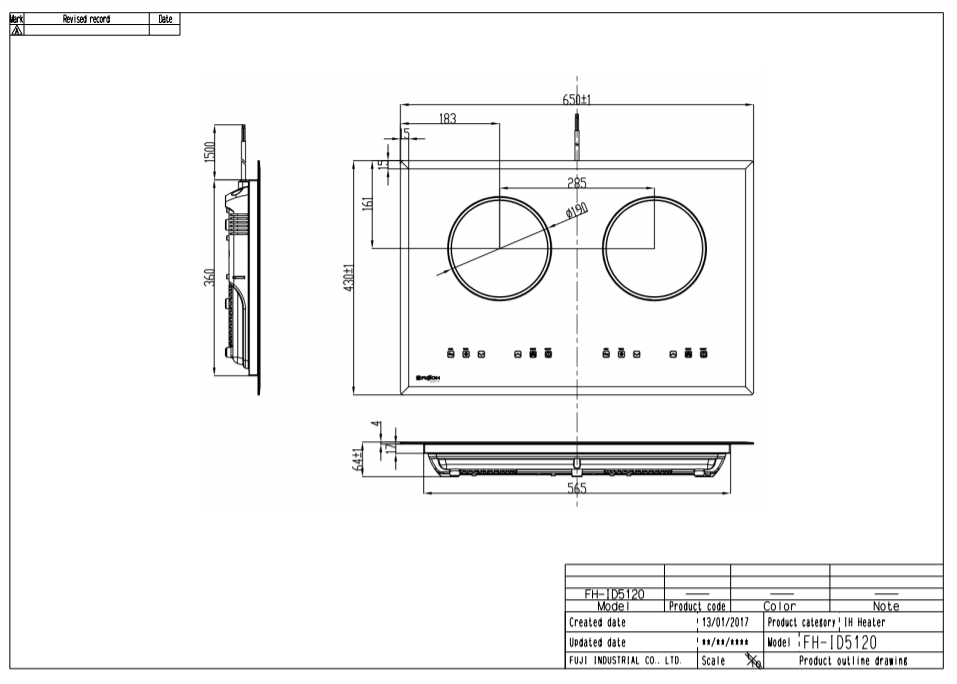

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

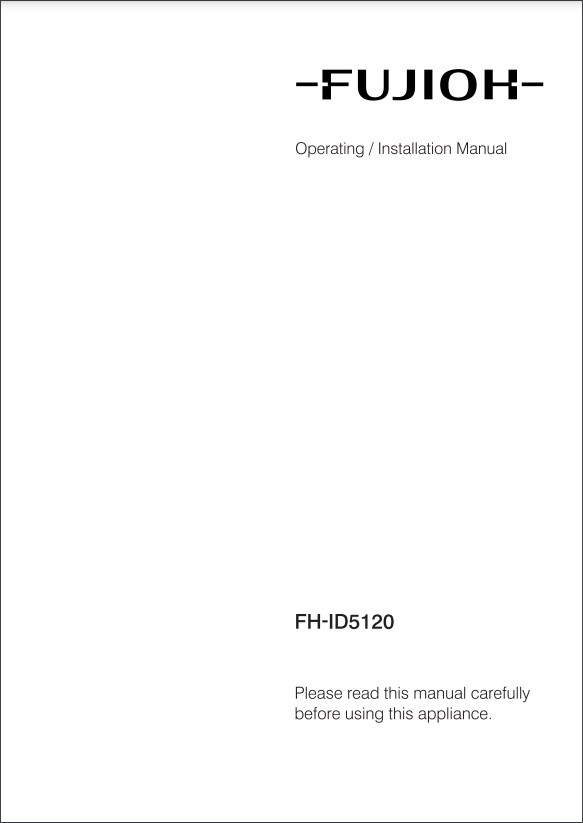

PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
