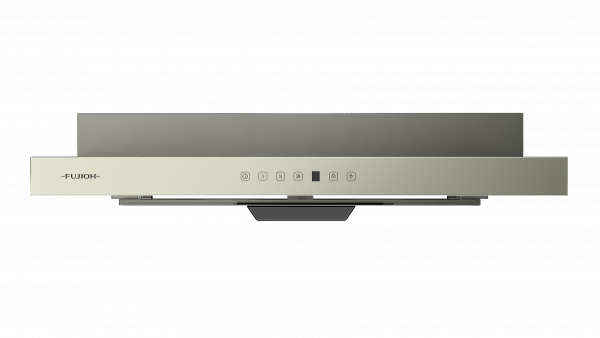

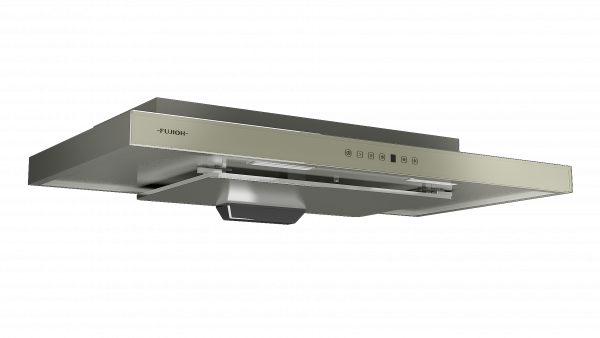

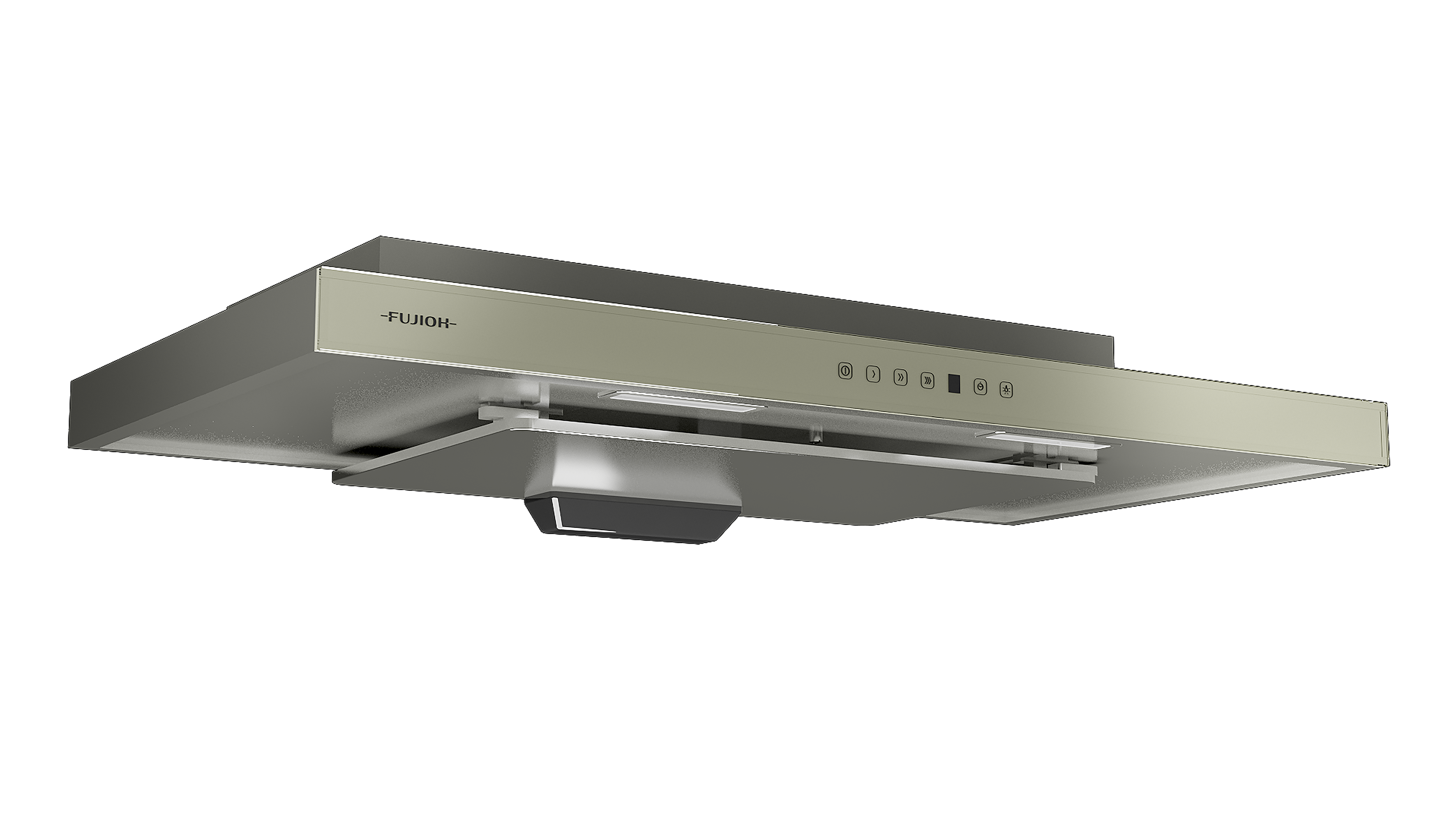

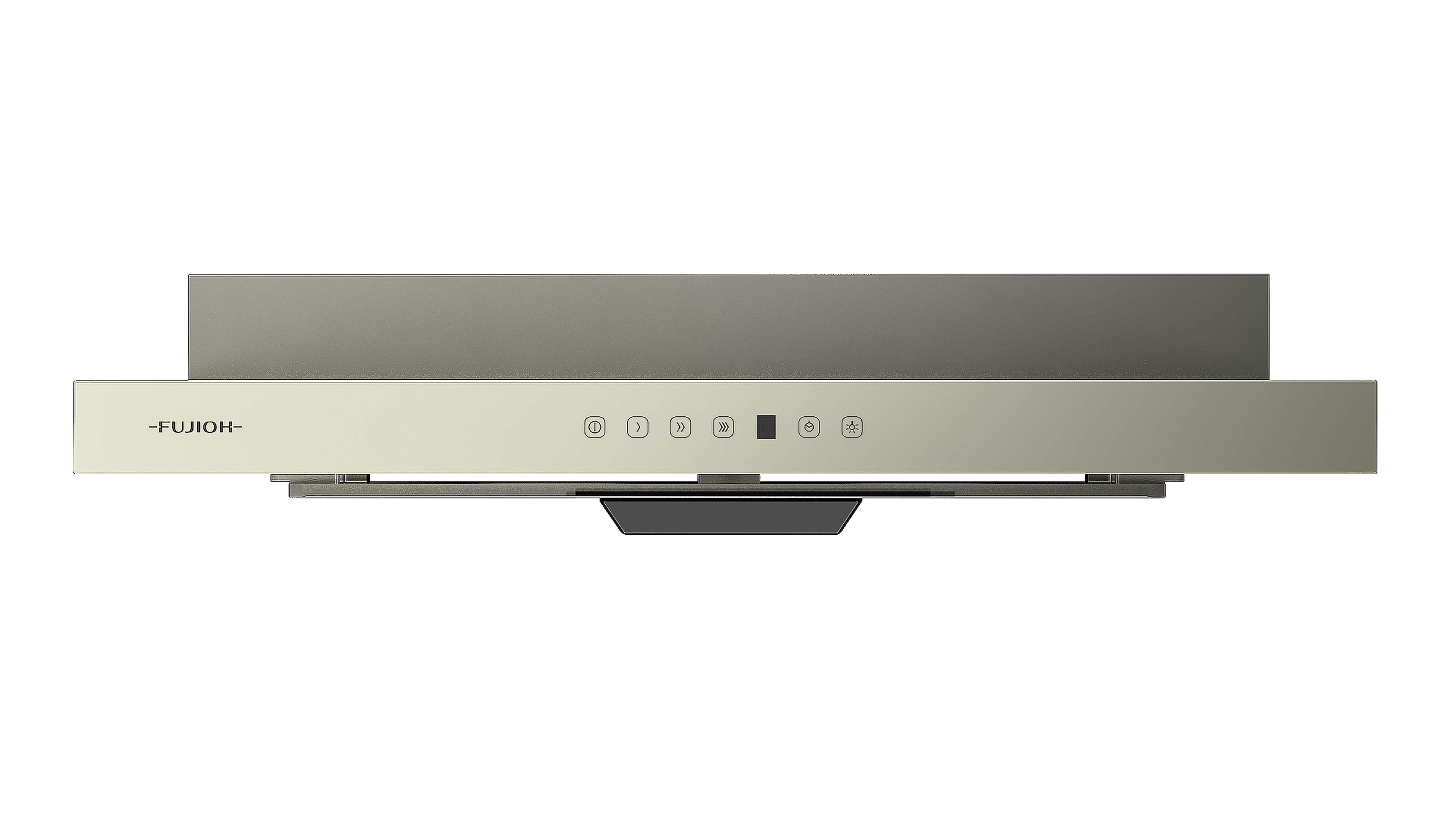

900mm Super Slim Cooker Hood
FR-MS1990 R/V
Icon Include
Aqua Slit Filter
Icon Include
Rectifier Panel
Icon Include
Slim Design
Icon Include
Touch Switch
Icon Include
Timer
Icon Include
SUS304 Body
Icon Include

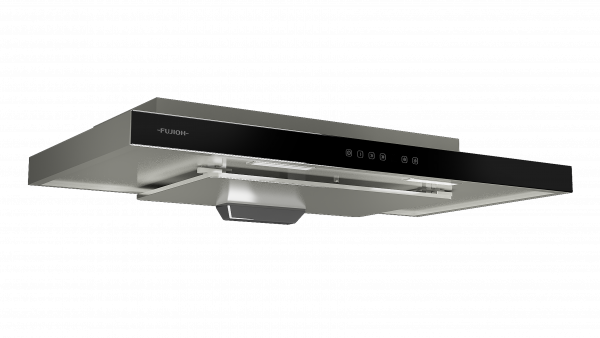

Color Variation
Icon Include
Oil Tray
Icon Include
LED

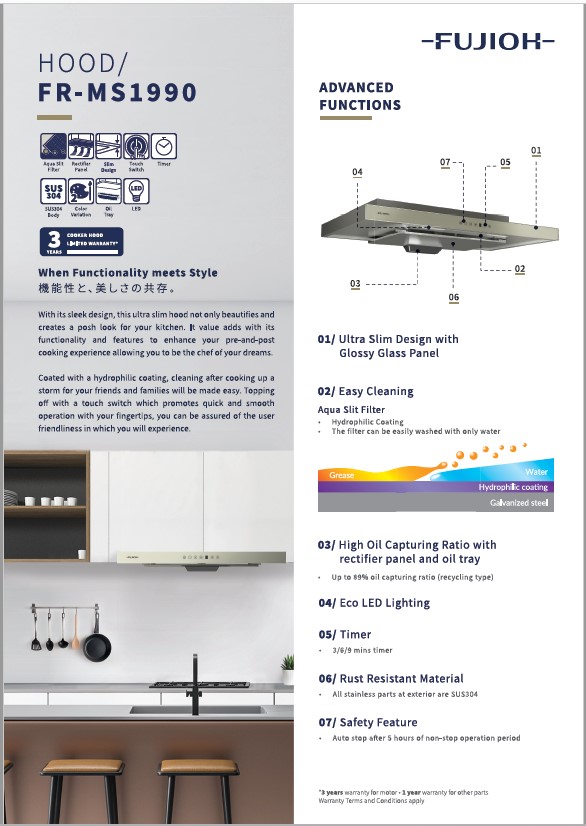

When Functionality meets Style
With its sleek design, this ultra slim hood not only beautifies and creates a posh look for your kitchen, it value adds with its functionality and features to enhance your pre-and-post cooking experience allowing you to be the chef of your dreams.

Coated with a hydrophilic coating, cleaning after cooking up a storm for your friends and families will be made easy. Topping off with a touch switch which promotes quick and smooth operation with your fingertips, you can be assured of the user friendliness in which you will experience.

Country of Origin: Made in China

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

  • Aqua Slit Filter with Hydrophilic Coating
  • Touch Switch Panel
  • Super Slim Hood
Clear
Feature
01/ Ultra Slim Design with Glossy Glass Panel Icon Icon
02/ Easy Cleaning Icon

Aqua Slit Filter

Feature
Feature
03/ High Oil Capturing Ratio with Rectifier Panel and Oil Tray Icon
  • Up to 89% oil capturing ratio (recycling type)
04/ Eco LED Lighting Icon
05/ 3/6/9 Min Timer Icon
06/ Rust Resistant Material Icon
  • All stainless parts at exterior are SUS304
07/ Safety Feature
  • Auto stop after 5 hours of non-stop operation period

Models

FR-MS1990R

FR-MS1990V

Type

Recycling

Ventilation

Material

SUS304

SUS304

Dimensions [mm]

W900 x D460 x H120

W900 x D460 x H120

Weight [kg]

10.6

10.3

Power Consumption [W]
(220/230/240V)

141/148/163

218/233/255

Voltage [V/Hz]

220-240/50

220-240/50

Duct Diameter [mm]

-

150

Air Flow [m3/h]
(220/230/240V)

245/260/275

400/420/435

Sound Level [dB]
(220/230/240V)

53/55/56

57/58/59

Oil Capturing Ratio [%]

89

86

Switch

Touch Switch

Touch Switch

Speed

3 Speeds

3 Speeds

Hood Body

SUS304

SUS304

Fan

Plastic fan

Plastic fan

Rectifier Panel

SUS304

SUS304

Filter

Aqua Slit Filter
Hydrophilic Coating

Aqua Slit Filter
Hydrophilic Coating

Oil Tray

Plastic

Plastic

Motor

AC Motor

AC Motor

Lighting

LED 1.5W x 2

LED 1.5W x 2

Timer

3/6/9 mins

3/6/9 mins

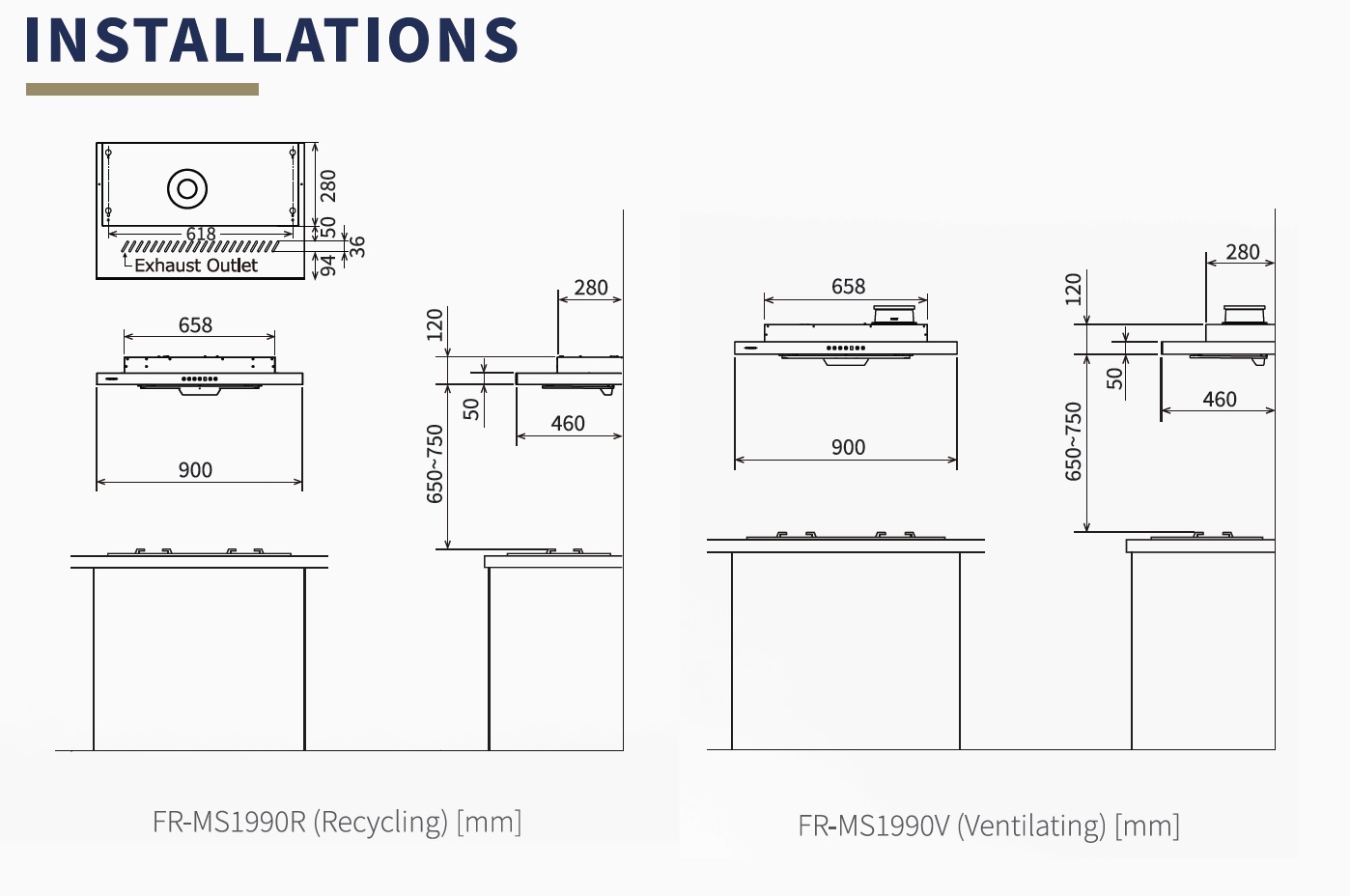

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

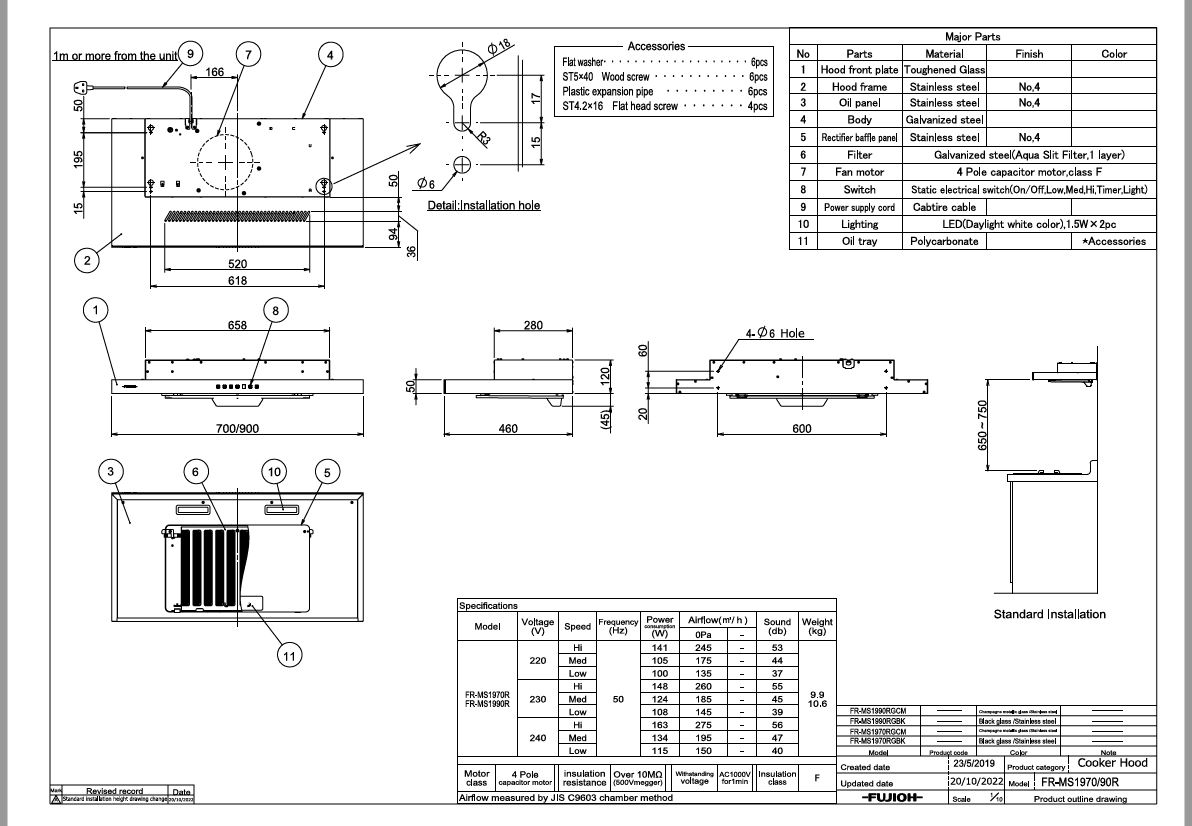

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

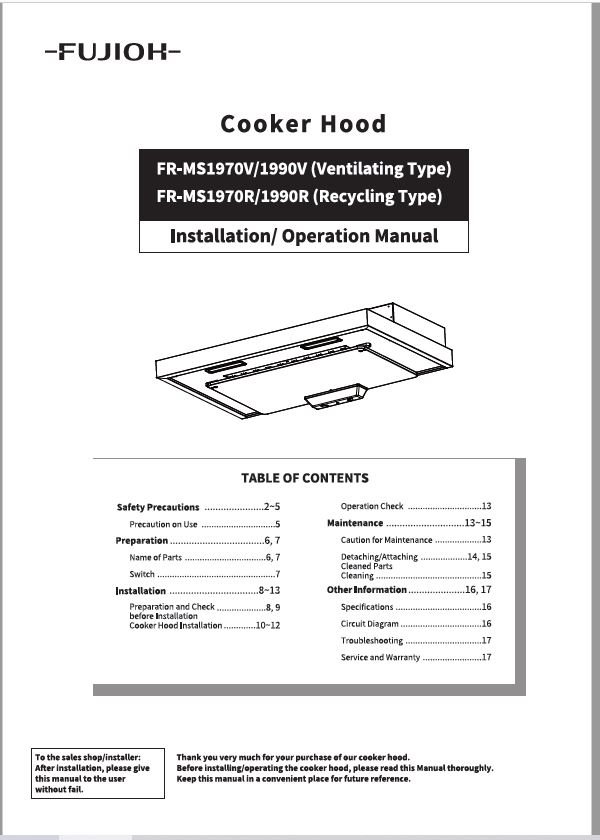

PRODUCT MANUAL

Please download Product Manual here.

Downloads
PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Oil Tray
  • Aqua Slit Filter
  • Rectifier Panel
  • Mounting Brackets
CHECK FOR ACCESSORIES AVAILABILITY
