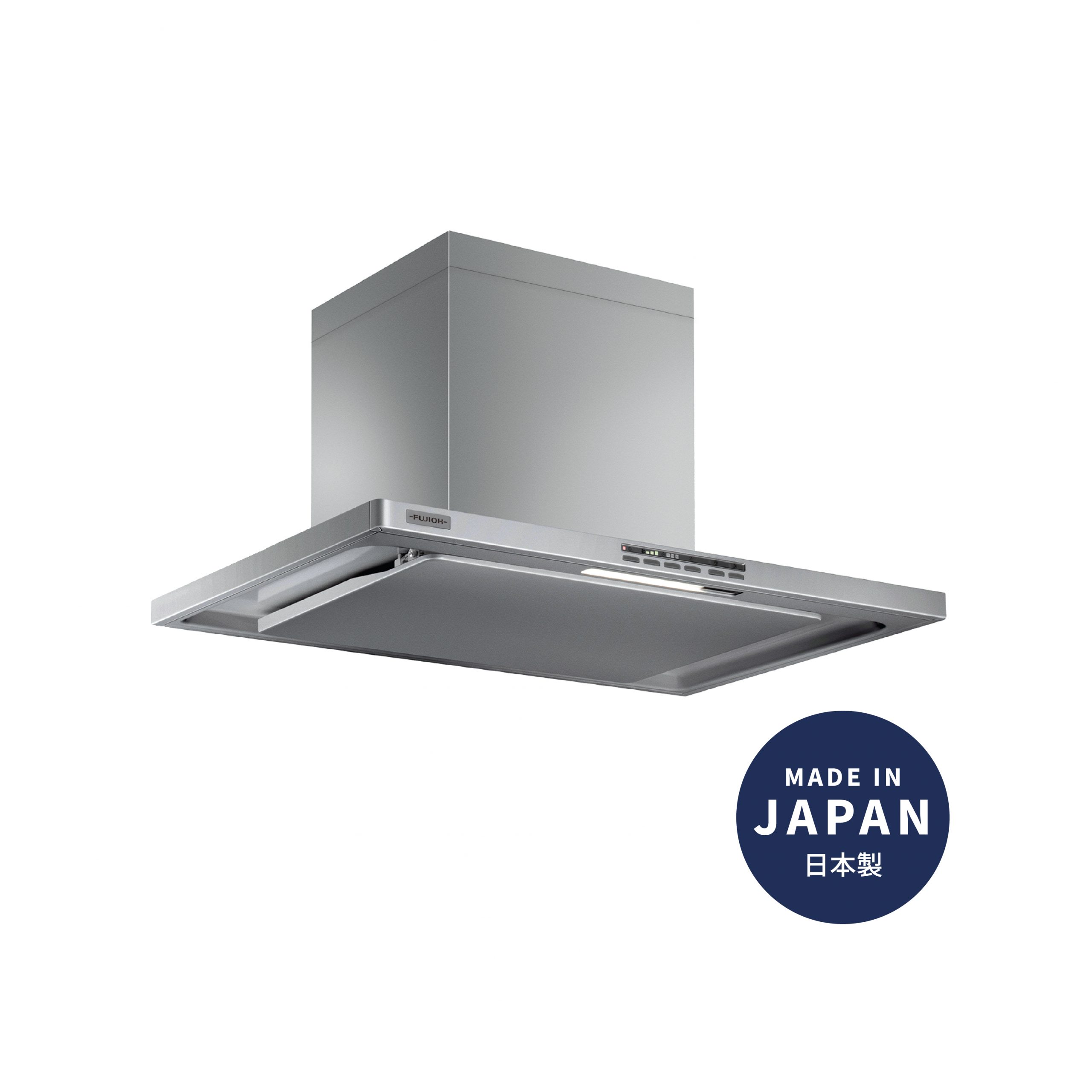

900mm Made in Japan Chimney Cooker Hood With OIL SMASHER
FR-CL1890 R/V
Icon Include
OIL SMASHER
Icon Include
Aqua Slit Spinning Disk
Icon Include
Oil Repellent Oil Tray
Icon Include
Oil Repellent Exterior Hood
Icon Include
Rectifier Panel
Icon Include
Boost
Icon Include
Soft Switch
Icon Include
Timer
Icon Include
Cleaning Lamp
Icon Include
DC Motor
Icon Include
Safety Shutdown
Icon Include

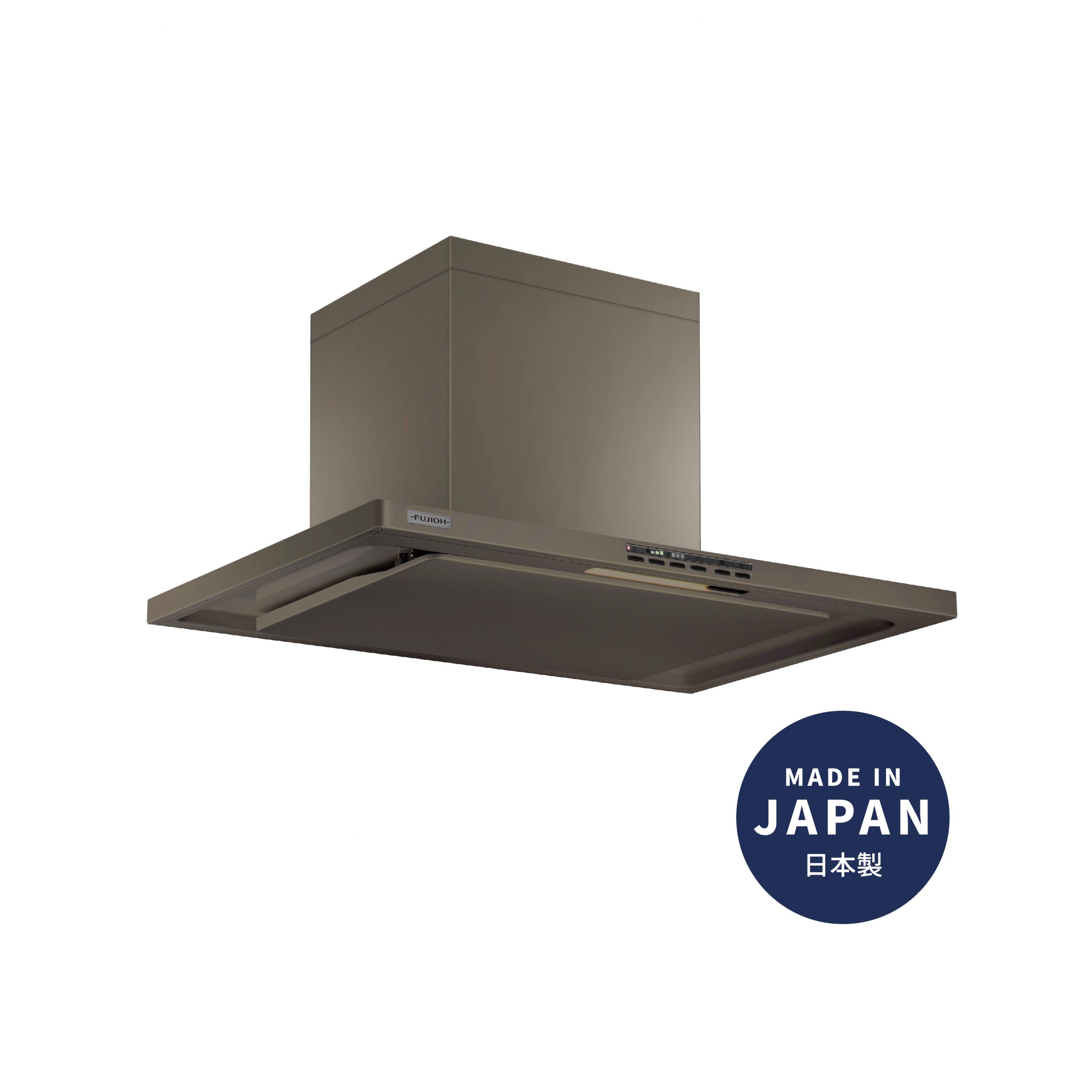

Color Variation
Icon Include
LED

Your solution for an oil-free kitchen

Cooking with oil means delicious meals for your family but an oily kitchen as well. Unless you have the OIL SMASHER cooker hood that is.

This state-of-the-art, super-sleek hood features patented OIL SMASHER technology. An internal high-speed spinning disk captures the oil to stop build-up on your kitchen surfaces. The innovative cleaning reminder alarm lets you know when it’s time to clean the disk. Simply remove, wash easily and replace as new. Your kitchen has never felt so clean.

Country of Origin: Made in Japan

Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

  • Patented OIL SMASHER Technology
  • Aqua Slit Spinning Disk
  • Oil Repellent Paint on exterior hood surface
Clear
Feature
01. High-speed Spinning Disk Icon

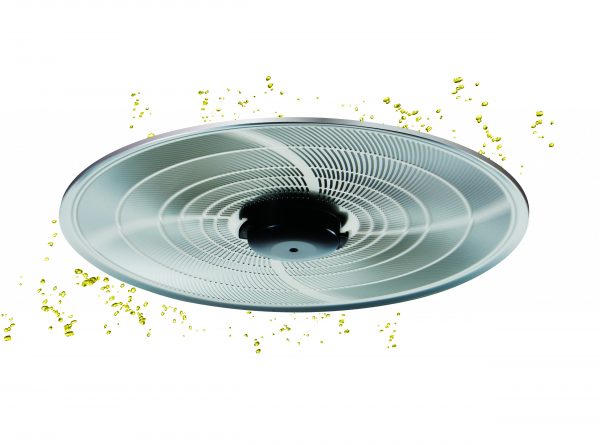

Patented OIL SMASHER High-speed Spinning Disk keeps oil out.

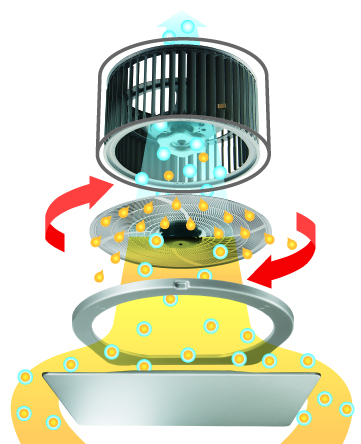

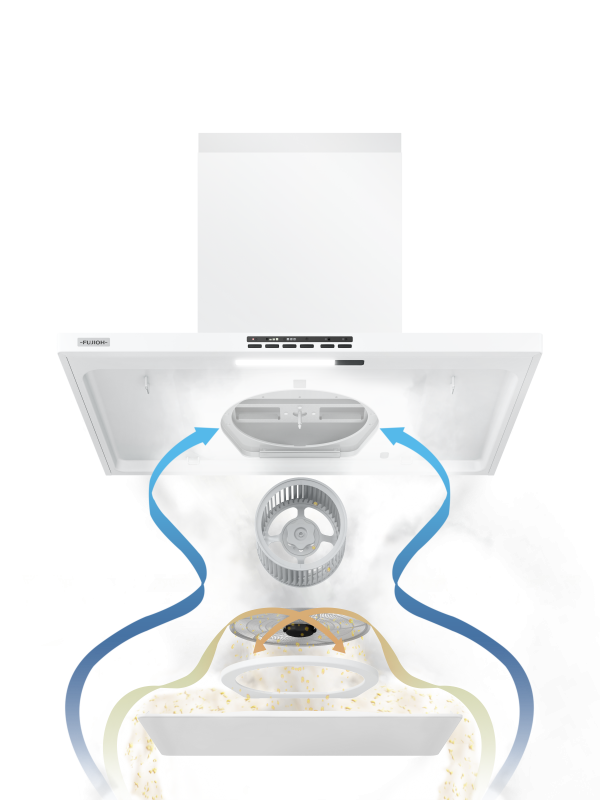

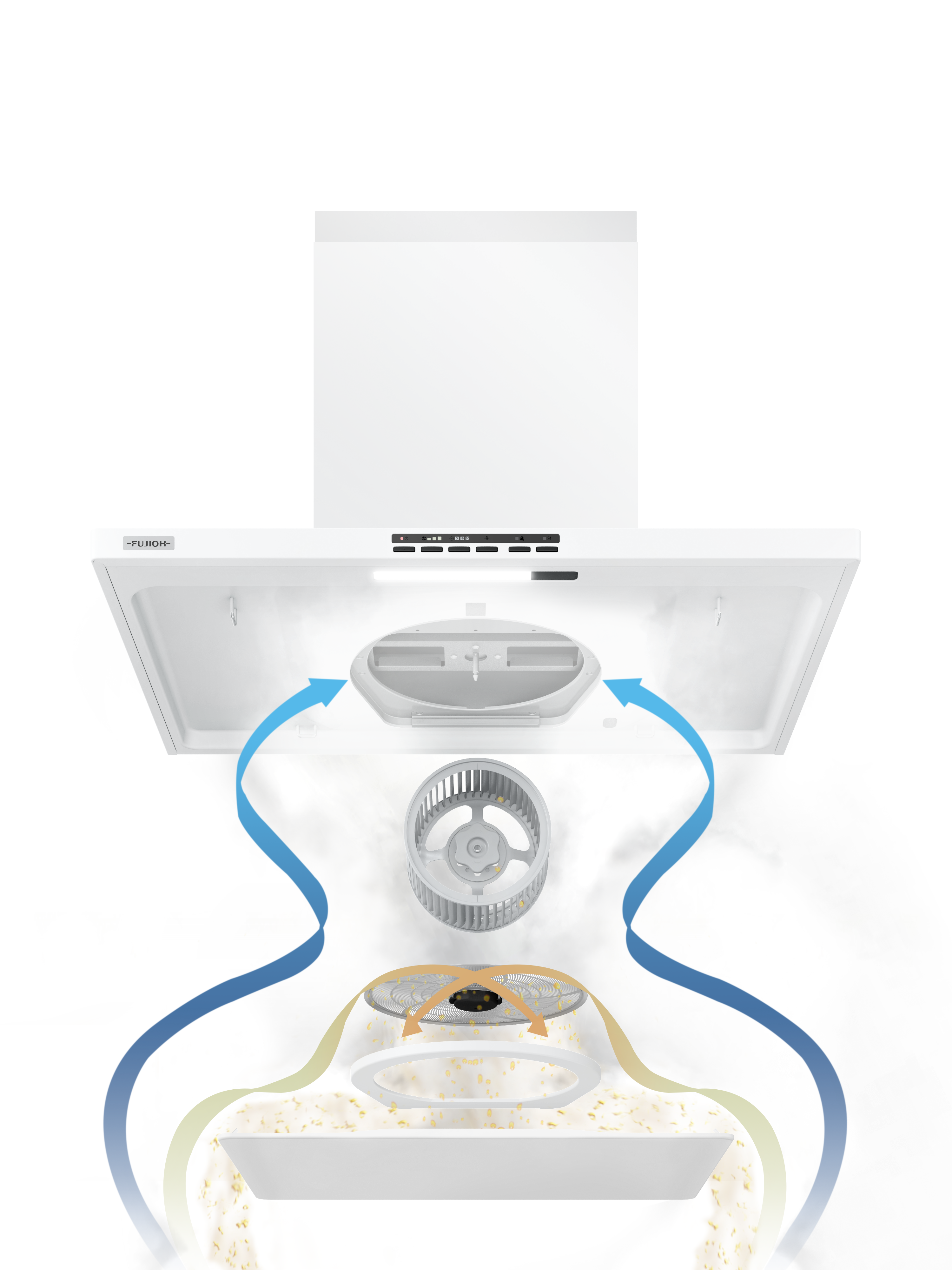

The disk spins and catches most of the oil in the cooking fumes. The oil on the disk is spun off by centrifugal force and collects in the oil tray.

02. Easy to Clean Icon Icon Icon

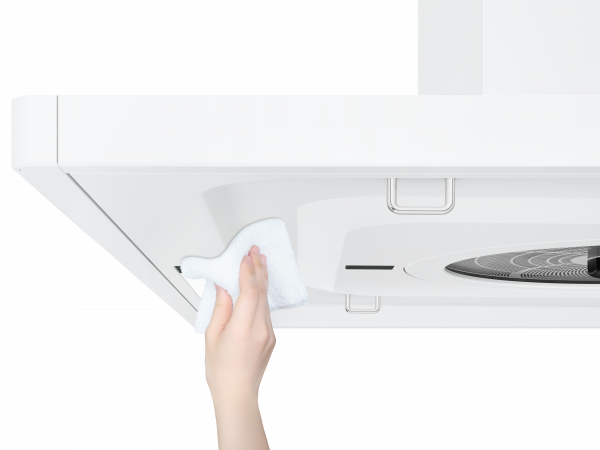

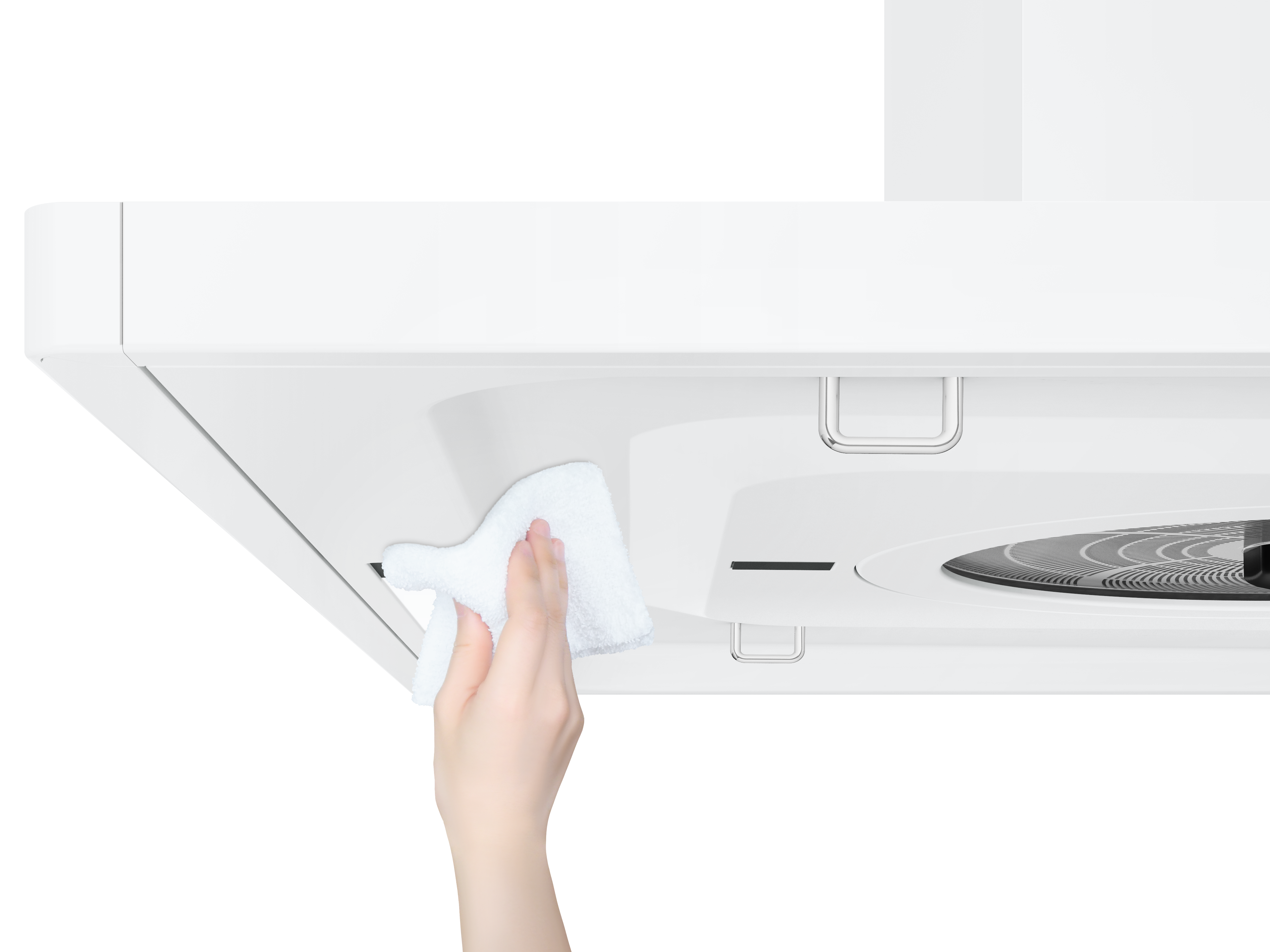

The material repels oil and lifts it from the surface so it’s easy to wipe up. Cleaning takes much lesser time and effort compared to conventional materials.

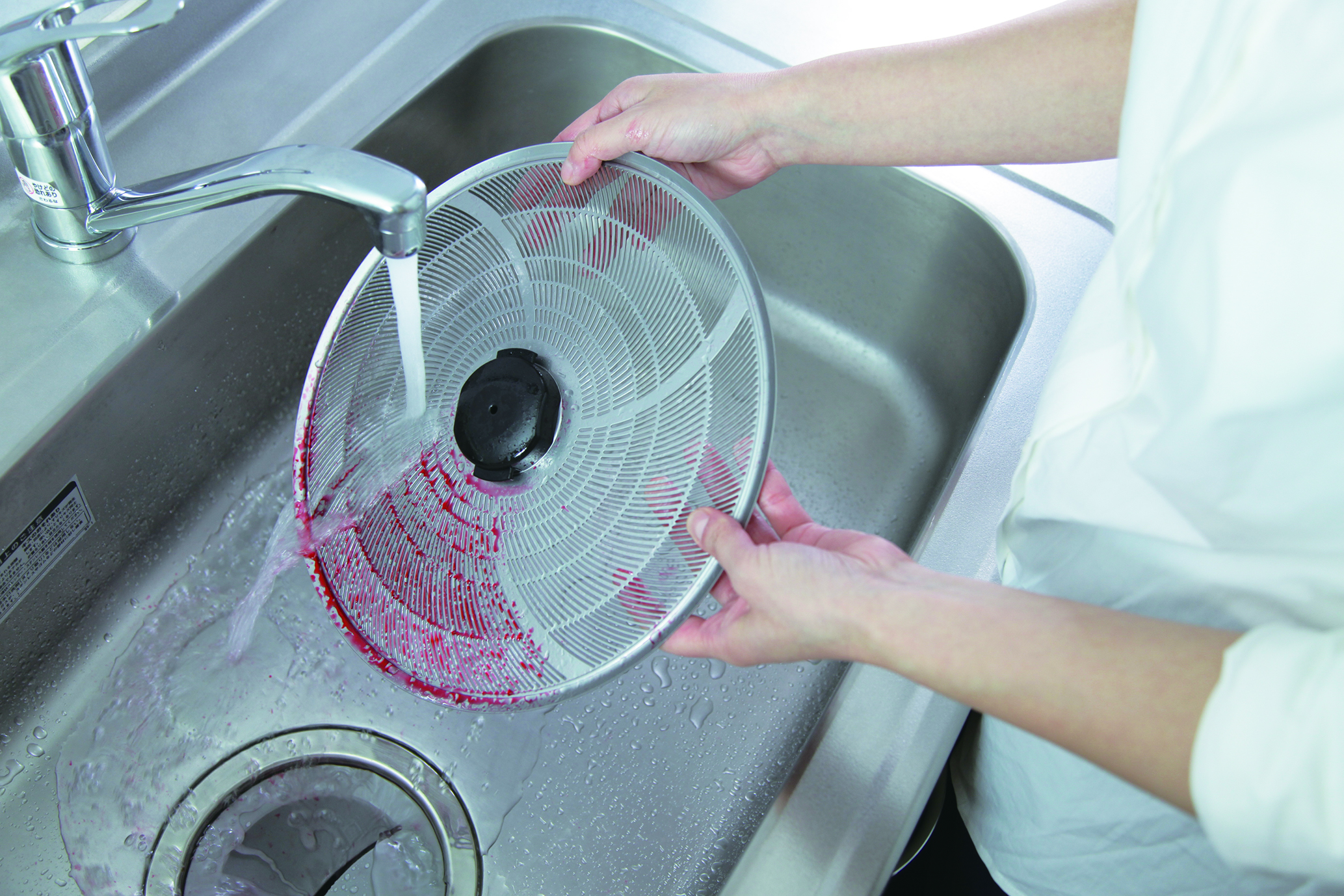

Oil gets lifted from the surface by water thanks to the hydrophilic coating. That’s what makes the disk so easy to clean.

Feature
Feature
03. Cleaning Reminder Feature Icon

Reminds you when it’s time to clean, so you’ll never forget.
The cleaning lamp lights up according to the total running time of the cooker hood.

*Items to clean: Parts that can be removed and cleaned (oil tray & disk)
*Time when running for 24 hour mode does not count
*Wipe off the rectifier panel and oil panel in normal daily care

Models

FR-CL1890R

FR-CL1890V

Type

Recycling

Ventilation

Material

(Body) Galvanized Steel

(Body) Galvanized Steel

Dimensions [mm]

W900 x D600 x H750~800

W900 x D600 x H550~960

Weight [kg]

31

28

Power Consumption [W]

(220/230/240V)

94/94/94

62/62/62

Voltage [V/Hz]

220-240/50

220-240/50

Duct Diameter [mm]

-

150

Air Flow [m3/h]

(220/230/240V)

420/420/420

420/420/420

Sound Level [dB]

(220/230/240V)

54/54/54

46/46/46

Oil Capturing Ratio [%]

94

91

Switch

Electronic Soft Touch

Electronic Soft Touch

Speed

3 Speed & Boost mode & 24 hour mode

3 Speed & Boost mode & 24 hour mode

Hood Body

Oil Repellent Paint

Oil Repellent Paint

Fan

Steel Fan

Steel Fan

Rectifier Panel

Oil Repellent Paint

Oil Repellent Paint

Filter

Aqua Slit Spinning Disk
Stainless Steel with Hydrophilic Coating

Aqua Slit Spinning Disk
Stainless Steel with Hydrophilic Coating

Oil Tray

Oil Repellent Paint

Oil Repellent Paint

Motor

DC Motor

DC Motor

Lighting

LED 3.5W x 1

LED 3.5W x 1

Timer

3/15/30 min & Cleaning Lamp Function

3/15/30 min & Cleaning Lamp Function

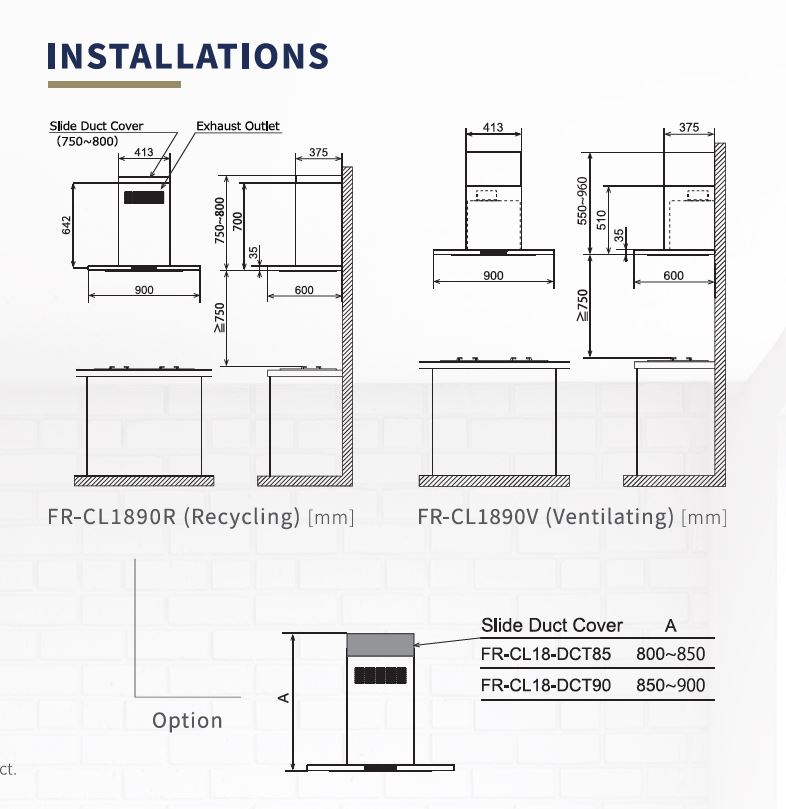

INSTALLATION DRAWING

Please download Installation Drawing here.

Drawing

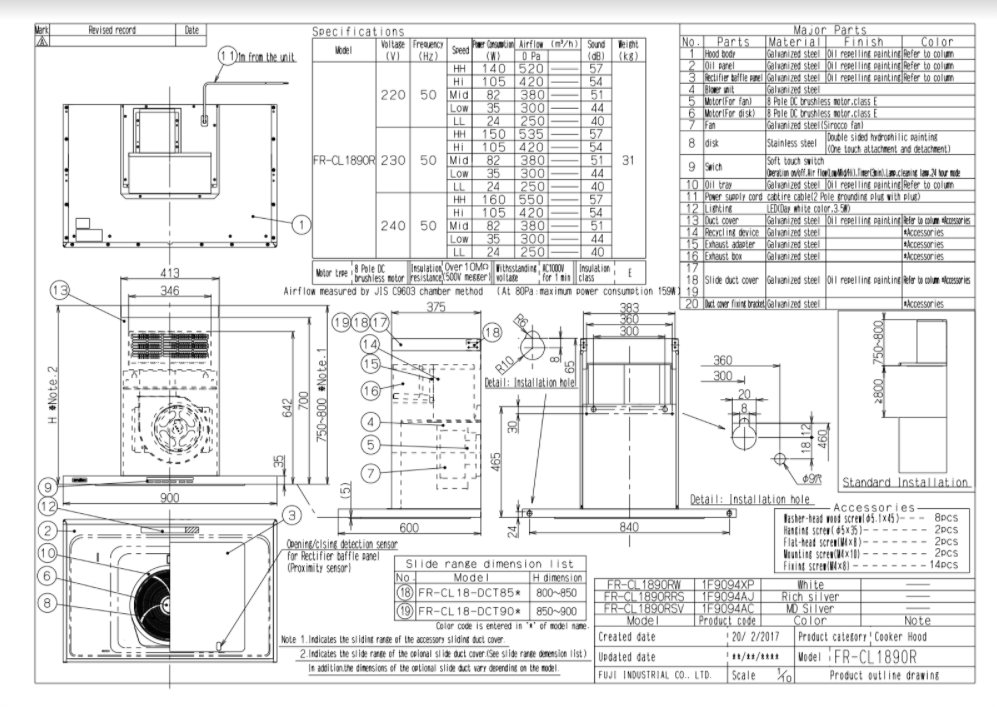

PRODUCT DRAWING

Please download Product Drawing here.

Drawing

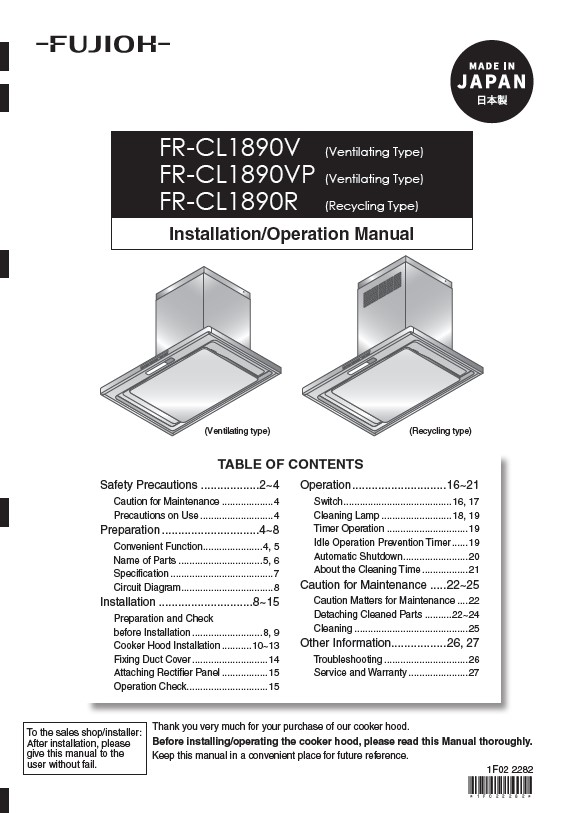

PRODUCT MANUAL

Please download Product Manual here.

Downloads

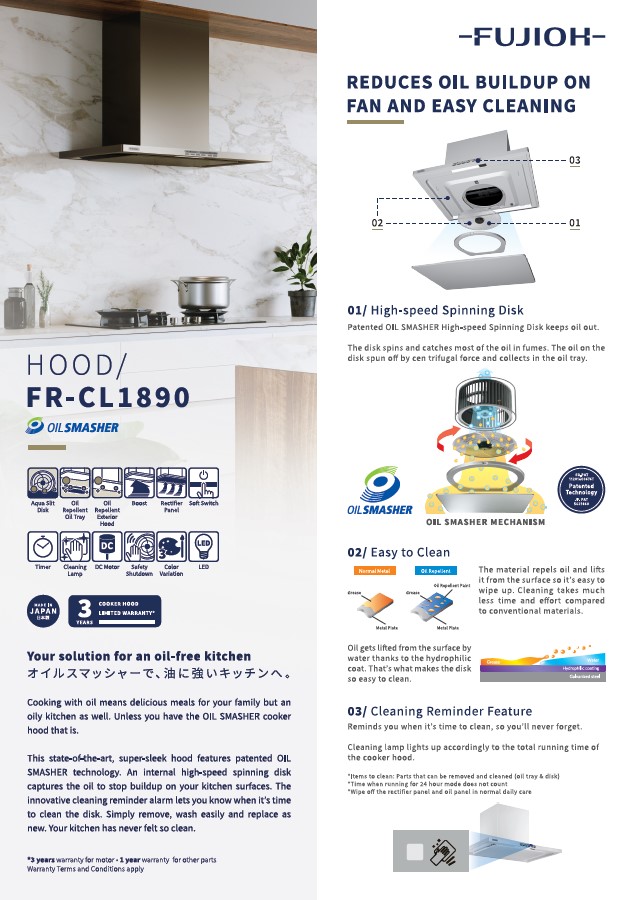

PRODUCT CATALOGUE

Please download Product Catalogue here.

Downloads
Accessories
  • Oil Tray
  • Aqua Slit Spinning Disk
  • Rectifier Panel
CHECK FOR ACCESSORIES AVAILABILITY
