Small in size, big on performance
This ultra-thin hood is deceptively tough on oil to stop build-up on your kitchen surfaces.
Three aesthetically gorgeous finishes mean there’s the perfect Slim Oil Tech cooker hood for your interior design. Especially designed for the Asian kitchen, it captures your cooking fumes and filters the oil into the oil tray for easy removal and cleaning. Technically advanced, it doesn’t have to be big to be powerful.
Country of Origin: Made in Japan
Warranty Coverage:
3-year warranty for motor and 1-year warranty for other parts
Warranty Terms and Conditions apply

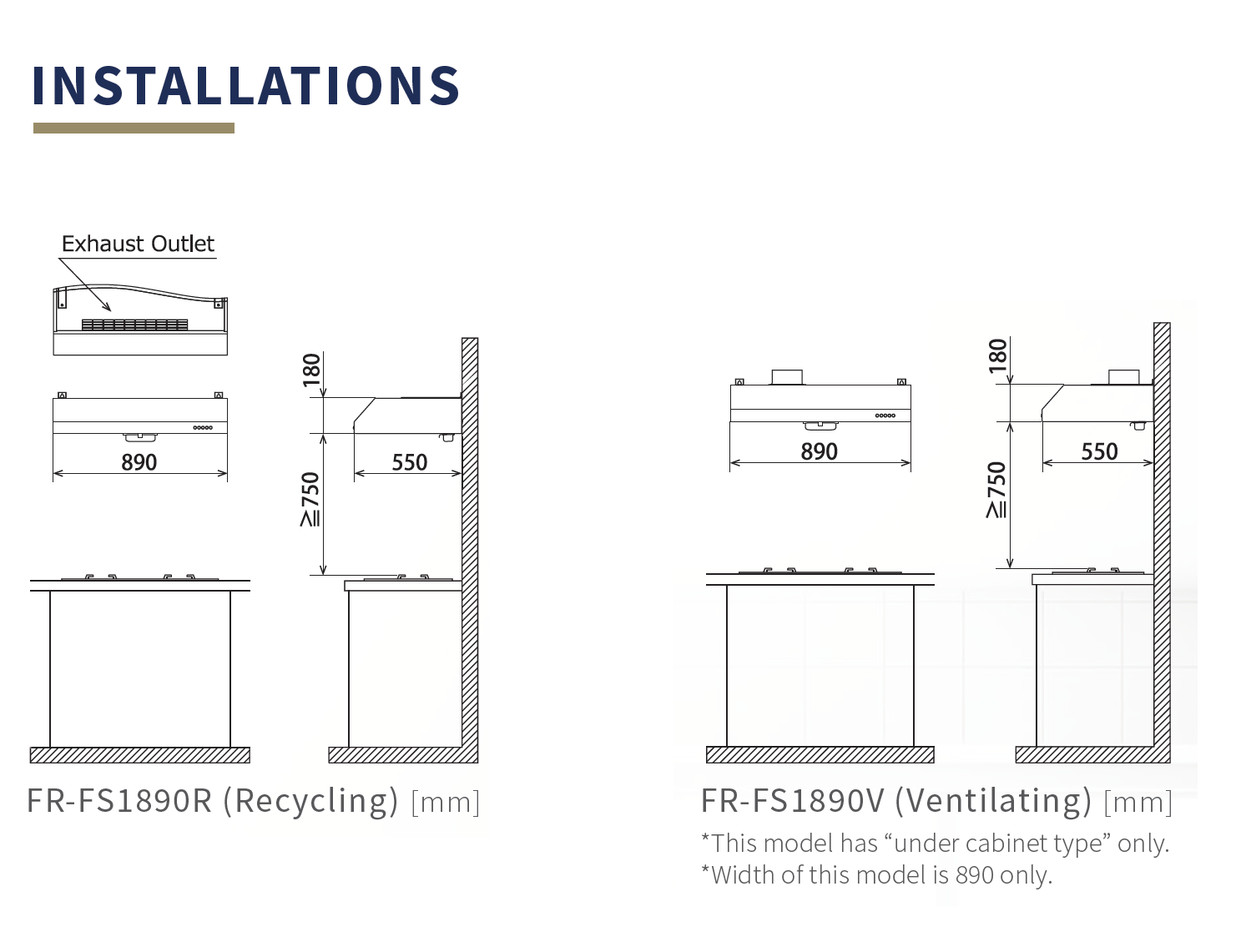

• Easy to install
• Only 180mm high
• Capture more fumes efficiently

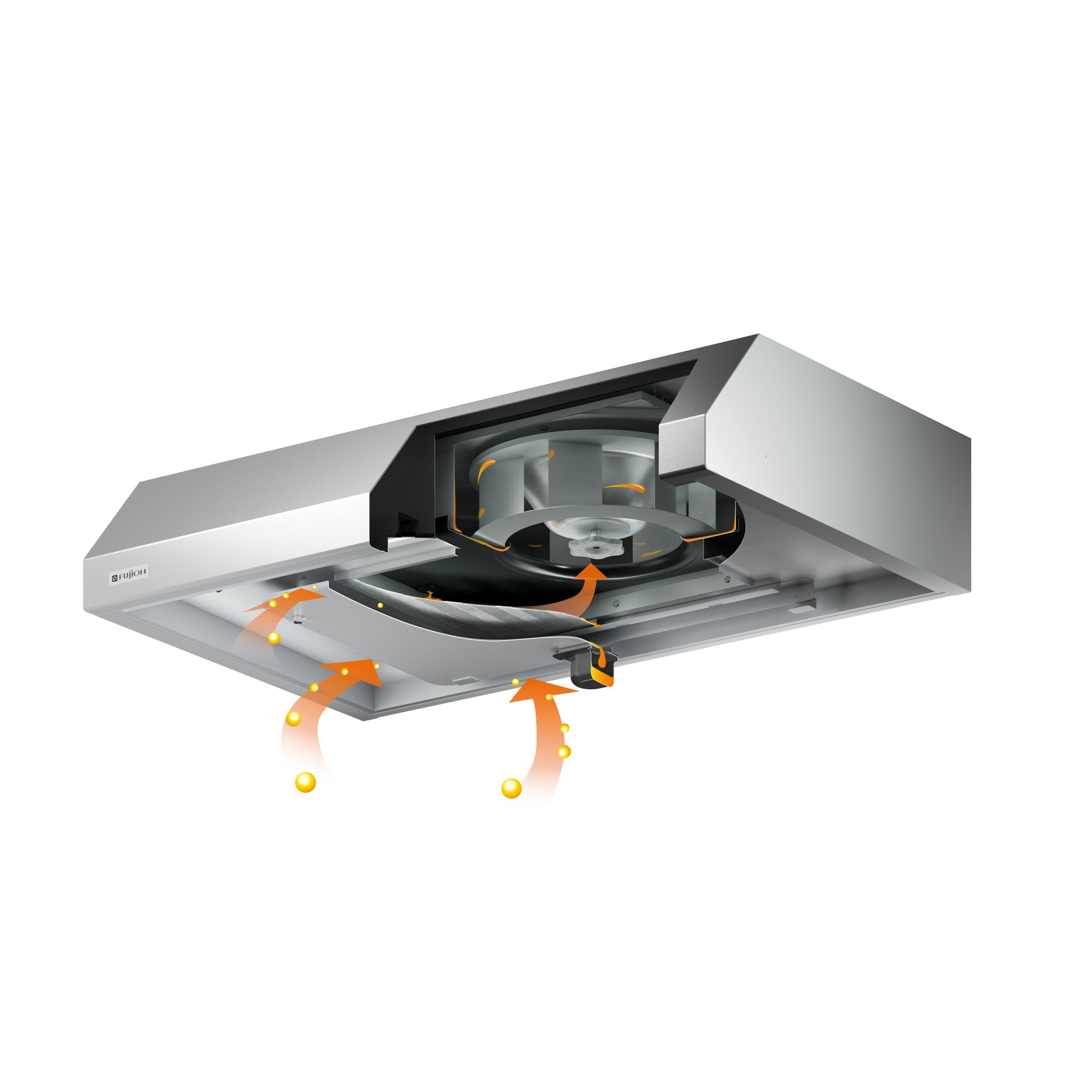

• Oil separation process filtrates captured fumes into oil
• Oil flows into the oil tray with the help of rectifier panel, aqua slit filter and fan
• Oil repellent paint is processed on surfaces
• Easy to wipe and clean
• Hydrophilic Coating
• The filter can be easily washed with only water
Models |
FR-FS1890R |
FR-FS1890V |
|---|---|---|
Type |
Recycling |
Ventilation |
Material |
(Body) Galvanized Steel |
(Body) Galvanized Steel |
Dimensions [mm] |
W890 x D550 x H180 |
W890 x D550 x H180 |
Weight [kg] |
20 |
21 |
Power Consumption [W] |
92/97/103 |
92/97/103 |
Voltage [V/Hz] |
220-240/50 |
220-240/50 |
Duct Diameter [mm] |
- |
150 |
Air Flow [m3/h] |
500/505/510 |
500/505/510 |
Sound Level [dB] |
56/57/57 |
57/58/59 |
Oil Capturing Ratio [%] |
83 |
81 |
Switch |
Mechanical Push Button |
Mechanical Push Button |
Speed |
3 Speeds |
3 Speeds |
Hood Body |
Oil Repellent Paint |
Oil Repellent Paint |
Fan |
Steel fan |
Steel fan |
Rectifier Panel |
Oil Repellent Paint |
Oil Repellent Paint |
Filter |
Aqua Slit Filter |
Aqua Slit Filter |
Oil Tray |
Oil Repellent Paint |
Oil Repellent Paint |
Motor |
AC Motor |
AC Motor |
Lighting |
LED 3.5W x 1 |
LED 3.5W x 1 |
Timer |
- |
- |
- Oil Tray
- Aqua Slit Filter
- Rectifier Panel
